Drywall Grid System: HD8906F08

Pre-engineered drywall ceiling suspension system that is three times faster to install than traditional track and channel framing.

Performance
  • Compatible with XAL LENO and Lighting family
    • Find an XAL LENO Sales Representative
    • Find an Axis Click Sales Representative
  • Reduce the risk - tested and engineered to be code compliant
  • Isolation Clip integrates with the new HD8906IIC main beam to help you ensure your drywall ceiling installations meet IBC requirements for IIC
  • 6' spacing on mains results in cost savings of 10-15% by reducing material, hanger wire and installation time

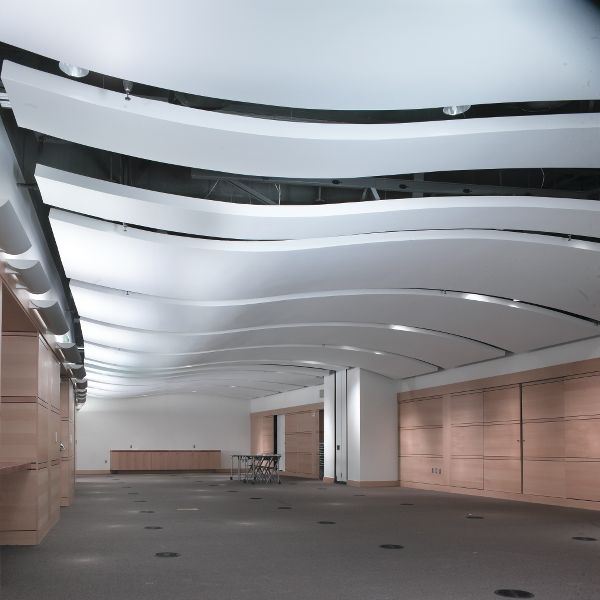

  • Simplify your curved drywall installations with our pre-notched main beams to create the radius you need
  • Only manufacturer to offer aluminum, 100% zinc and galvanized control and expansion joints


See More


Specifications

Component TypeDescriptionDimensions

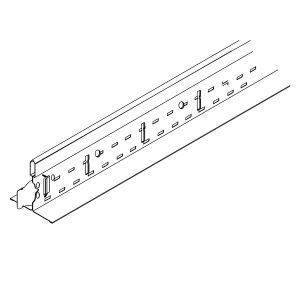

Main Beam12ft HD Drywall Main Beam Faceted 8in O.C.144 in x 1-1/2 in x 1-11/16 in
Performance
Duty Rating Heavy Duty
Seismic Category * DEF
Physical Data
Material Hot-dipped Galvanized Steel
Cross Tee/Main Beam Interface Flush fit
End Detail Staked-on clip
Feet (Ft / Carton) 144
Pieces / Carton 12
Visual
Length 144 in
Face Profile 1-1/2 in
Height 1-11/16 in
Profile Type Drywall/Stucco/Plaster
Component Type Main Beam
