Armstrong World Industries, Inc. -CERAMAGUARD Fine Fissured: 608 - Acoustical Ceiling Tile

A non-directional ceiling panel for special application areas prone to moisture.

Category: acoustical ceilings | commercial ceilings | mineral fiber ceilings...

MasterFormat: Ceilings | Acoustical Panel Ceilings | Acoustical Tile Ceilings...

Armstrong World Industries, Inc.
P.O. Box 3001
Lancaster, PA 17604
Tel: (717) 397-0611

Overview

CERAMAGUARD Fine Fissured: 608 - Acoustical Ceiling Tile

A non-directional ceiling panel for special application areas prone to moisture.

Performance

Inorganic product. Resistant to the growth of mold and mildew
Durable - Washable and Soil-resistant
Resistance to chemical fumes
Non-directional visual reduces scrap and installation time
Superior resistance to sagging in high humidity conditions including standing water and outdoor applications

Specifications

Performance

Acoustics
Sound Absorption (NRC)	0.55
Sound Blocking (CAC)	40
Fire
Fire Performance	Fire Resistive
Fire Resistance *	FireGuard
Light Reflectance	79%
Sag/Humidity Resistance	HumiGuard Max
Insulation Value	R Factor-BTU: 1.40 BTU R Factor-Watts: 0.25 m2 K/W
Durability	Washability
Special Applications	Swimming / Hydro-therapy

Physical Data

Material	Mineral Fiber

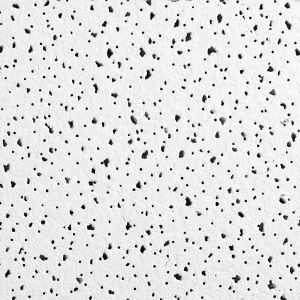

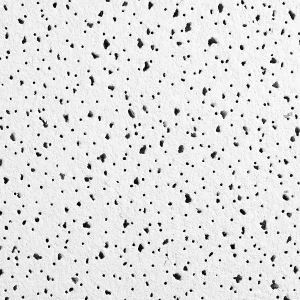

Texture	Medium
Surface Finish	Factory-applied vinyl latex paint
Shape	Rectangle
Weight	1.52 PF2
Sq Ft (Sq Ft / Carton)	48
Pieces / Carton	6
ASTM Classification	Type: XX, Pattern: CE
Installation Method	Grid (Suspended)
