Overview


CALLA Health Zone AirAssure: 2229

  • Factory-gasketed edges reduce air leakage through the ceiling plane in a space up to 4X compared to panels without AirAssure performance
  • AirAssure ceilings enable easy conversion to negative or positive pressure-controlled spaces (without hold-down clips)
  • Clean Rooms up to ISO Class 5 (Class 100) using standard non-gasketed suspension systems
  • Excellent sound blocking: CALLA Health Zone AirAssure panels with TOTAL ACOUSTICS performance provide 40 CAC
  • Get total noise control and floor plan versatility with TOTAL ACOUSTICS ceiling panels: NRC + CAC = TOTAL ACOUSTICS Performance
  • CALLA Health Zone AirAssure panels are part of the SUSTAIN portfolio and meet the most stringent industry sustainability compliance standards today
  • CLEANASSURE family of products - includes disinfectable panels, suspension systems, and trim
  • Anti-Bacterial/Mold/Mildew - Ceiling tiles with BioBlock Plus performance resist the growth of odor and stain producing bacteria as well as mold and mildew on the ceiling tile surface
  • Exceeds FGI Guidelines for acoustics and cleanability
  • Exceeds ANSI S12.60 Classroom Acoustic requirements
  • Meets USDA/FSIS guidelines
  • Panels: 30-Year Limited System Warranty against visible sag, mold, and mildew and bacterial growth


See More


Specifications

EdgeDimensionsAcoustics
0.80 NRC 40 CAC 170 AC

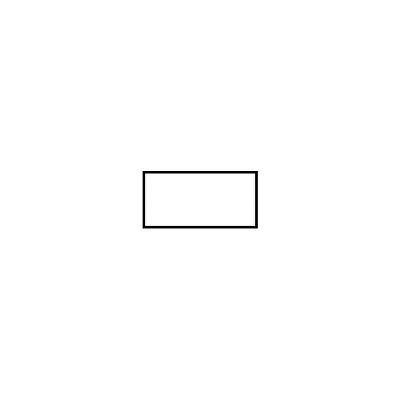

Square Lay-In 15/16"24" x 48" x 1"
Performance

Acoustics

Sound Absorption (NRC)

0.80

Sound Blocking (CAC)

40

Articulation Class (AC)

170
Fire
Fire Performance Class A

Light Reflectance

85%

Sag/Humidity Resistance

HumiGuard Plus
Clean Room Classification Clean Room Class 100
Insulation Value R Factor-Watts: 0.445 m2 K/W

BioBlock

Yes
Disinfectability

Fog

Spray

Wipe

Durability

Water Repellent

Soil Resistance

Impact Resistance

Scratch Resistance

Washability

Scrubbability

Special Applications
  • Clean Room
Physical Data
Material Mineral Fiber
Texture Smooth
Surface Finish Acoustically transparent membrane with factory applied latex paint
Shape Rectangle
Weight 1.02 PF2
Sq Ft (Sq Ft / Carton) 48
Pieces / Carton 6
ASTM Classification Type: IV, Form: 2, Pattern: E
Installation Method Grid (Suspended)
Accessibility
Accessibility Yes
