AXIOM for INTERLUDE: AXLD6QSIS3

This pre-engineered trim allows the continuation of the Interlude XL HRC suspension system visual to the perimeter of the ceiling.

Performance

Used exclusively with Interlude XL HRC suspension system
Available in our most popular profile sizes 2", 4", and 6"
Expansion sleeve (IES3) allows the unique Interlude visual to be extended to the perimeter
Extruded aluminum trim pr...

Category: acoustic ceiling suspension systems | ceiling trim | suspended ceiling perimeter trim...

MasterFormat: Ceilings | Acoustical Ceilings | Acoustical Ceiling Suspension Assemblies

Armstrong World Industries, Inc.
P.O. Box 3001
Lancaster, PA 17604
Tel: (717) 397-0611

Overview

This pre-engineered trim allows the continuation of the Interlude XL HRC suspension system visual to the perimeter of the ceiling.

Performance

Used exclusively with Interlude XL HRC suspension system
Available in our most popular profile sizes 2", 4", and 6"
Expansion sleeve (IES3) allows the unique Interlude visual to be extended to the perimeter
Extruded aluminum trim provides more crisp edge detailing compared to conventional roll-formed steel systems
Colors coordinate with Armstrong ceiling and suspension systems; custom colors available

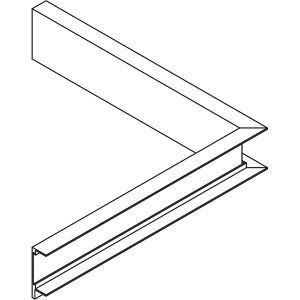

Standard 90º factory-mitered outside and inside corners
Recommended for use with full-size ceiling panels

Specifications

Component Type	Description
Inside Corner	6in Axiom Interlude Quick Ship Inside Corner 360 P

Physical Data

Material	Extruded Aluminum
Cross Tee/Main Beam Interface	Flush fit
End Detail	Concealed spline clip with screws
Feet (Ft / Carton)	1
Pieces / Carton	1

Visual
