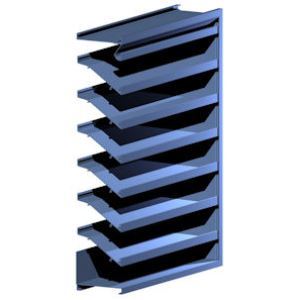

E6DF Wall Louvers

E6DF is a heavy duty high performance 6" deep louver with a drainable blade feature to channel water away from the blades. This feature allows very high air intake velocities before entraining water. If your application is air intake, this is the highest rated louver we have. If this louver will not handle your intake velocities, consider a wind driven rain louver instead (E6WH).

The High Performance series will handle higher intake velocities with lower pressure drop across the louver. These models have the added benefits of higher free areas and allowing greater air velocities before entraining water.

Features:

• Made to order in sizes 12" wide x 12" high up to unlimited size
• Made from heavy gauge 0.081" thickness aluminum extrusion
• 6" frame depth, channel frame
• 4" blade spacing
• Heavy Duty Drainable blade
• Internal Screen (Bird Screen)

Specs:

• 61% free area for a 48" wide x 48" high louver
• Greater than 1250 fpm first point of water penetration
• 30 psf wind load design
• 4.30 pounds per square foot average weight

Options:

• A variety of metal finishes including paint and anodizing
• Insect Screen (replaces bird screen)
• Mounting: flange frame, glazing channel frame, "J" channel frame
• Special shapes for architectural appeal
• Higher wind load ratings
