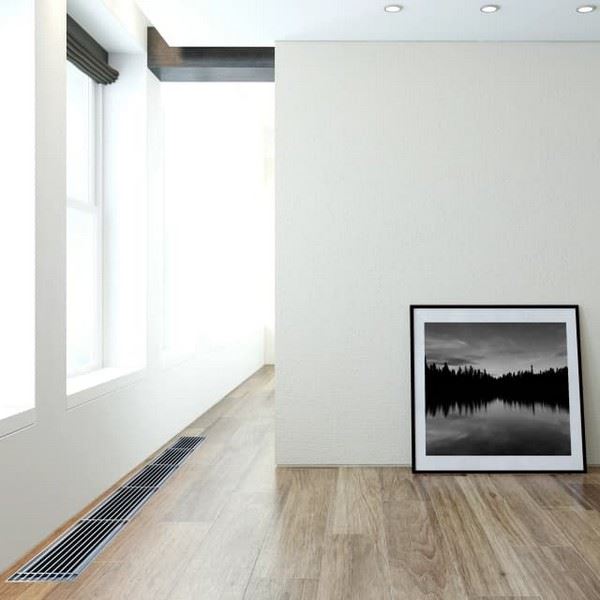

Floor Mounted H-Frame Bar Grille
The original floor mounted H-Frame Bar Grille is available with several core styles depending on desired deflection and diffusion for any modern space. It is designed to be installed BEFORE flooring is laid and is ideal where a flush, borderless pre-construction installation for floor applications is required to achieve a clean line and minimalist design - "less is more" with this premium quality product for your next residential or commercial project.
Manufactured using post-consumer 94% recycled aluminum, the H-Frame Bar Grille can help you achieve LEED™ credits and certification for your next “green” project.
Two (2) Methods of Fastening are available:
- #521: Drop-in Floor Grille
- #522: Drop-in Floor Grille -Removable Core with Fastening Tabs* (core can be removed)
- *NOTE: Custom Hex Key and Head Screws for Fastening Tabs are provided with #522 option
The H-Frame Bar Grille is available in a variety of materials and finishes, and can also be customized to your needs and project standards - request a quote today!
H-Frame Bar Grille core styles include: AG10; AG20; AG30; AG40; AG50; AG60 (see thumbnails for individual cross-section profiles)
Standard Features- Flush borderless Pre-Construction installation
- Designed to be installed BEFORE flooring is laid
- Ideal for floor applications
- Creates a smooth, seamless clean look
- Grille becomes part of the flooring
- Mitered Corners available
- Custom Spacing between bars available
