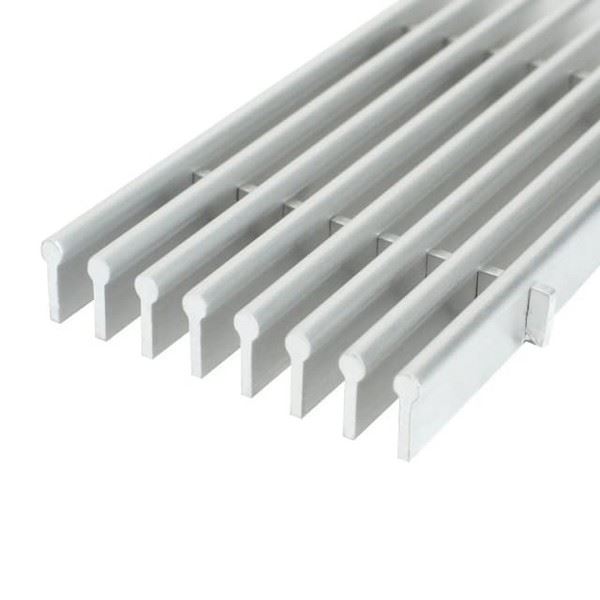

AG60 Bar Grille
When an advanced air flow engineering requirement meets an architecturally stylized linear product, the result is the AG60 Bar Grille. Having zero deflection with rounded deflection bars, the AG60 model is an aesthetically pleasing solution suitable for floor, ceiling, side wall and window sill applications in commercial and residential environments where something unique is required.
The AG60 Bar Grille is available in a variety of materials and finishes, and can be customized to your needs and project standards.
AG60 Bar Grille styles include: Core; A Frame; B Frame; C Frame; D Frame; E Frame; F Frame; G Frame; H Frame; I Frame; J Frame; K Frame (see thumbnails for individual cross-section profiles)
Standard Features- 0° Deflection
- Extruded aluminum and solid bronze only
- Weld-Lock constructed for maximum durability
- Pencil Proof: ¼” spacing between bars
- Custom Spacing available
- Core can be loose or welded to A, C, H, J or K Frames
- Mitered Corners / Beveled Edges available
- Pivot Access Door(s) available
