218 Cross Link Perforated Grille

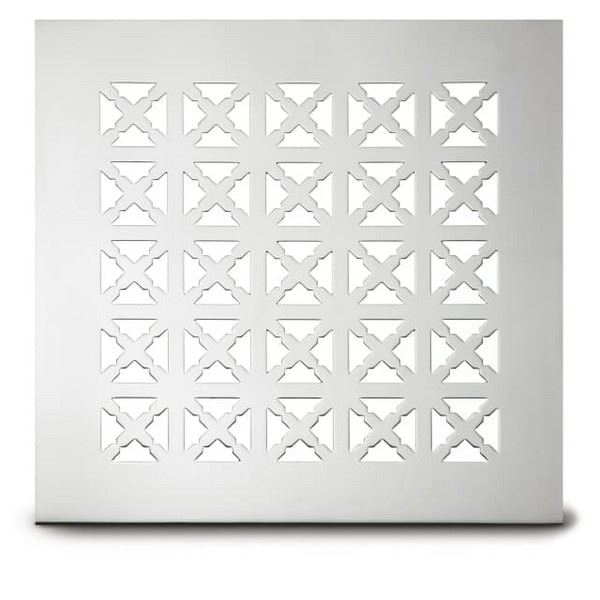

The #218 Cross-Link Perforated Grille is a variation of the #206 Maltese Perforated Grille combining a square perforation pattern with unique diagonal cross bars. Being a traditional design, this grille is ideal for historical renovations and replications in both residential and commercial spaces.

With a variety of materials and finishes to choose from, this pattern can be fully customized in thickness and size to your architectural needs and engineering requirements.

Pattern Dimension
  • 1 1/2" (36% Open)
Pattern Dimensions
  • 1½” pattern - 45% open area


See More


Specifications

Materials & finishes
MaterialPunched Thickness*(Min-Max)Finishes
Aluminum1/16" - 1/8"Adonized Colors (Clear)
Aluminum1/16" - 1/8"Adonized Colors (Light Duranodic)
Aluminum1/16" - 1/8"Adonized Colors (Medium Duranodic)
Aluminum1/16" - 1/8"Adonized Colors (Dark Duranodic)
Aluminum1/16" - 1/8"Adonized Colors (Black)
Aluminum1/16" - 1/8"Mirror Polish
Aluminum1/16" - 1/8"Powder Coating Colors
Aluminum1/16" - 1/8"Primed
Aluminum1/16" - 1/8"Satin
Bronze1/16" - 1/8"Mirror Polish
Bronze1/16" - 1/8"Satin
Bronze1/16" - 1/8"Statuary (US10B) Light
Bronze1/16" - 1/8"Statuary (US10B) Medium
Bronze1/16" - 1/8"Statuary (US10B) Dark
Brass1/16" - 1/8"Mirror Polish
Brass1/16" - 1/8"Satin
Brass1/16" - 1/8"Statuary (US10B) Light
Brass1/16" - 1/8"Statuary (US10B) Medium
Brass1/16" - 1/8"Statuary (US10B) Dark
Stainless Steel1/16" - 1/16"Satin
Stainless Steel1/16" - 1/16"Mirror Polish
Steel1/16" - 1/8"Powder Coating Colors
Steel1/16" - 1/8"Primed
Steel1/16" - 1/8"Raw
