Architectural Grille -212 Straight Hole Perforated Grille

DOWNLOADS

Featuring round holes that are horizontally & vertically inline, the #212 Straight Hole Perforated Grille is one of the most versatile round patterns in the industry.


Category: brass grilles | bronze grilles | perforated grilles...

MasterFormat: HVAC Air Distribution | Air Outlets and Inlets | Diffusers, Registers, and Grilles


View Product Details From Manufacturer


Architectural Grille
42 2nd Ave
Brooklyn, NY 11215
Tel: (718) 832-1200
Fax: (718) 832-1390

info@archgrille.com

https://www.archgrille.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

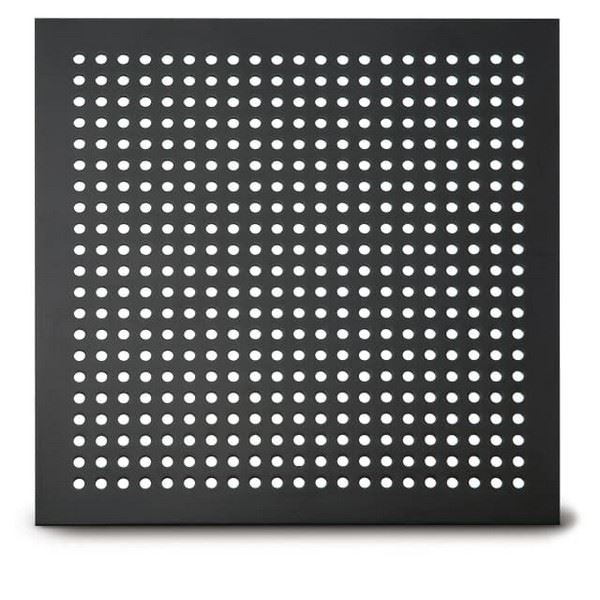

212 Straight Hole Perforated Grille

Featuring round holes that are horizontally & vertically inline, the #212 Straight Hole Perforated Grille is one of the most versatile round patterns in the industry. Due to the wide range of open areas for desired air flow and flexibility for both traditional and contemporary projects, it is ideal for any commercial or residential space.

With a variety of materials and finishes to choose from, this pattern can be fully customized in thickness and size to your architectural needs and engineering requirements.

Pattern Dimension
  • 1/4" Dia 1/2" Center (20% Open)
Pattern Dimensions
  • ¼” diameter with ½” centers - 21% open area
  • Various centers and diameter hole sizes available


See More


Specifications

Materials & finishes
MaterialPunched Thickness*(Min-Max)Finishes
Aluminum1/16" - 1/8"Adonized Colors (Clear)
Aluminum1/16" - 1/8"Adonized Colors (Light Duranodic)
Aluminum1/16" - 1/8"Adonized Colors (Medium Duranodic)
Aluminum1/16" - 1/8"Adonized Colors (Dark Duranodic)
Aluminum1/16" - 1/8"Adonized Colors (Black)
Aluminum1/16" - 1/8"Mirror Polish
Aluminum1/16" - 1/8"Powder Coating Colors
Aluminum1/16" - 1/8"Primed
Aluminum1/16" - 1/8"Satin
Bronze1/16" - 1/8"Mirror Polish
Bronze1/16" - 1/8"Satin
Bronze1/16" - 1/8"Statuary (US10B) Light
Bronze1/16" - 1/8"Statuary (US10B) Medium
Bronze1/16" - 1/8"Statuary (US10B) Dark
Brass1/16" - 1/8"Mirror Polish
Brass1/16" - 1/8"Satin
Brass1/16" - 1/8"Statuary (US10B) Light
Brass1/16" - 1/8"Statuary (US10B) Medium
Brass1/16" - 1/8"Statuary (US10B) Dark
Stainless Steel1/16" - 1/16"Satin
Stainless Steel1/16" - 1/16"Mirror Polish
Steel1/16" - 1/8"Powder Coating Colors
Steel1/16" - 1/8"Primed
Steel1/16" - 1/8"Raw
