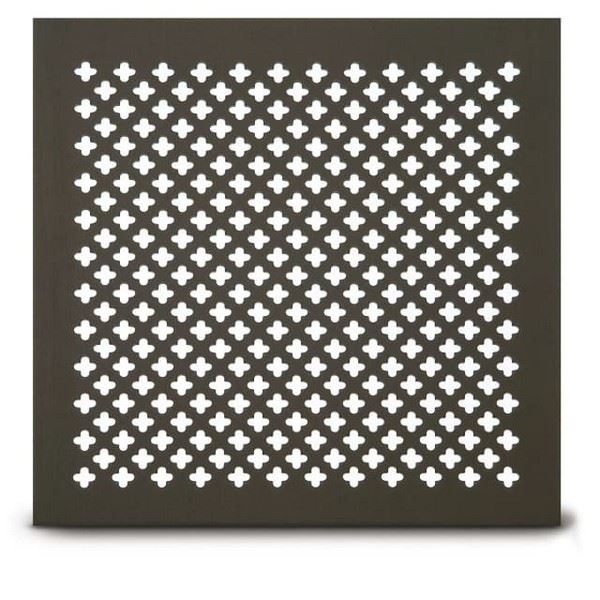

204 Clover Leaf Perforated Grille

Long considered lucky, the four leaf clover brings good luck, but technically is an uncommon variation of the everyday three leaf clover. Architectural Grille wanted to pass on this good luck to their customers, and the #204 Clover Leaf Perforated Grille was born. Varied open area options allow for air flow and ventilation in residential applications.

With a variety of materials and finishes to choose from, this pattern can be fully customized in thickness and size to your architectural needs and engineering requirements.

Pattern dimension
  • 1/2" x 3/16" (36% Open)
  • 1/2" x 1/4" (42% Open)
  • 1" (43% Open)
Pattern dimensions
  • ½” x ³⁄₁₆” pattern - 51% open area
  • ½” x ¼” pattern - 52% open area
  • 1” pattern - 50% open area


See More


Specifications

Materials & finishes
MaterialPunched Thickness*(Min-Max)Finishes
Aluminum1/16" - 1/8"Adonized Colors (Clear)
Aluminum1/16" - 1/8"Adonized Colors (Light Duranodic)
Aluminum1/16" - 1/8"Adonized Colors (Medium Duranodic)
Aluminum1/16" - 1/8"Adonized Colors (Dark Duranodic)
Aluminum1/16" - 1/8"Adonized Colors (Black)
Aluminum1/16" - 1/8"Mirror Polish
Aluminum1/16" - 1/8"Powder Coating Colors
Aluminum1/16" - 1/8"Primed
Aluminum1/16" - 1/8"Satin
Bronze1/16" - 1/8"Mirror Polish
Bronze1/16" - 1/8"Satin
Bronze1/16" - 1/8"Statuary (US10B) Light
Bronze1/16" - 1/8"Statuary (US10B) Medium
Bronze1/16" - 1/8"Statuary (US10B) Dark
Brass1/16" - 1/8"Mirror Polish
Brass1/16" - 1/8"Satin
Brass1/16" - 1/8"Statuary (US10B) Light
Brass1/16" - 1/8"Statuary (US10B) Medium
Brass1/16" - 1/8"Statuary (US10B) Dark
Stainless Steel1/16" - 1/16"Satin
Stainless Steel1/16" - 1/16"Mirror Polish
Steel1/16" - 1/8"Powder Coating Colors
Steel1/16" - 1/8"Primed
Steel1/16" - 1/8"Raw
