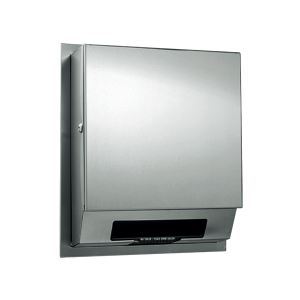

68523AC-4 Simplicity™ Automatic Roll Towel Dispenser, 110-240V/AC - Semi-Recessed

Proximity sensing no-touch unit dispenses a pre-set length per cycle from 8″ standard towel roll up to 800 ft. (244m) long and has stub roll capability for continuous dispensing.

Includes frame for semi-recessed mounting. Powered by internal low-voltage adapter (supplied) using 110-240V/AC, 50/60 Hz and providing output of 5VDC @ 1A.

Towels are dispensed one length at a time automatically when hands are placed in sensor zone until supply is depleted. Owner predetermines length of towel dispensed by making selections on three (3) three-position switches for length, delay, and economy. Unit may be reloaded with a full roll to automatically start when finished with an existing partial roll and will continue to feed properly when reloaded with a full roll and partial roll is transferred to stub roll position. Refill dispenser by unlocking door and replacing towel roll for an empty or partially empty unit. Dispenser supply is replenished manually. LED indicates sensing and operation. Locking door prevents unauthorized access and roll removal.

Dimensions

Overall Dimensions:

15-1/4″ x 18-5/16″ x 9-1/2″ (387 x 465 x 241 mm)

Wall Opening:

15-3/8″ x 17-7/8″ x 4″ min. (391 x 454 x 102 mm)
