Overview


Amarr® 2743 - Sectional Steel Doors

Insulation

Our polyurethane insulation provides the best R-values per inch when compared to other common types of sectional door insulation.

Environmental Assurance

Amarr garage doors are CFC, HFC & HCFC free, have zero Ozone Depletion Potential (ODP), zero Global Warming Potential (GWP) and comply with environmental laws and regulations.

This Super-Duty top-of-the-line high R-value door is constructed using 27-gauge exterior steel and foamed-in-place polyurethane insulation with a superior energy efficient R-value of 28.0.


See More


Specifications

Specifications Chart
Amarr 2743
Door Thickness3"
PanelPencil Groove
Steel Thickness27 Gauge
Exterior TextureStucco
Limited Warranty 10 Years
R-Value28.0
Max Std Width40'2"
Max Std Height26'1"
Features & Options

Energy Efficient

Rapid Install Vertical Lift

LEED

Made in the USA

Wind Load

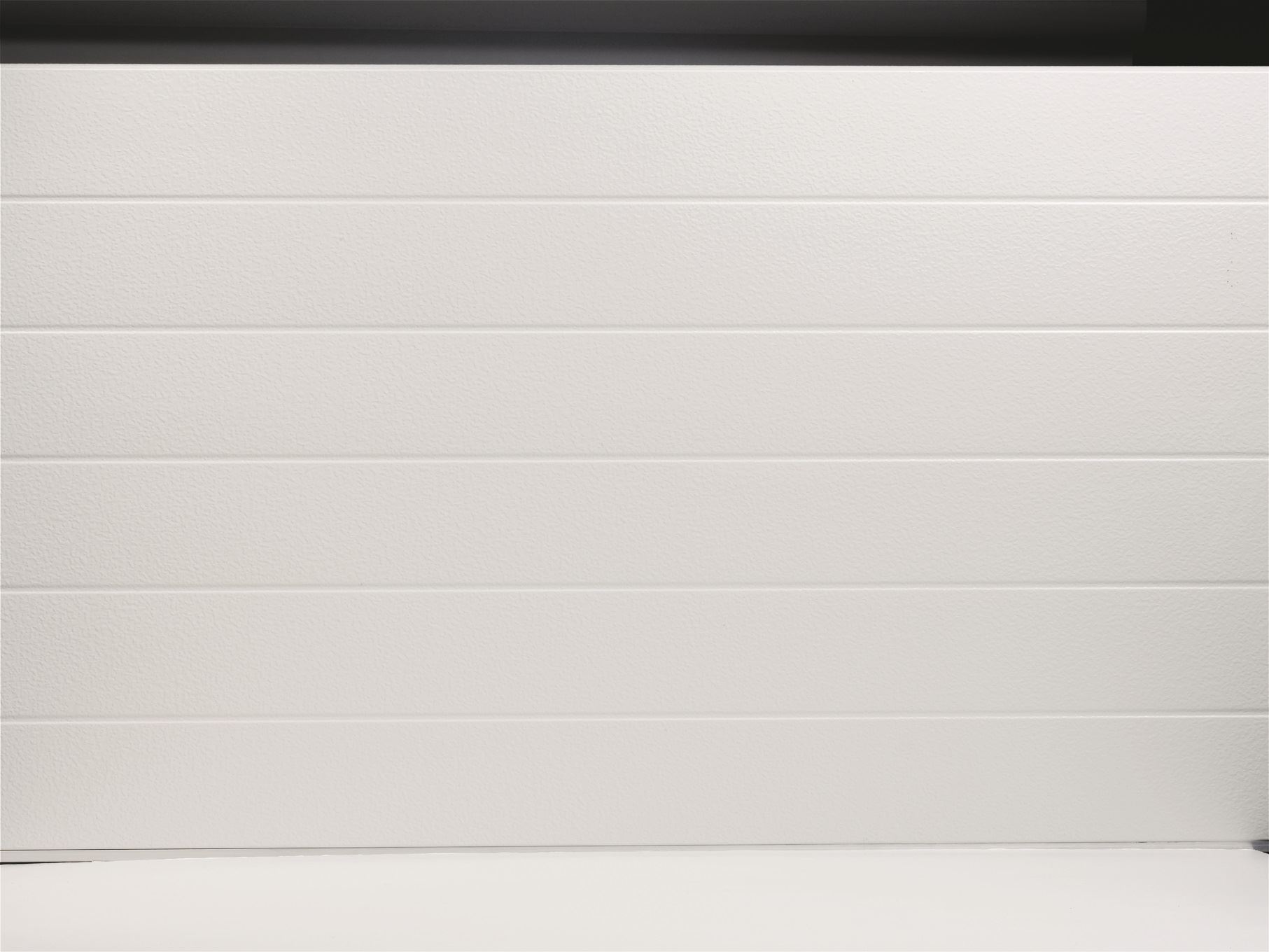

Section Design
Pencil Groove

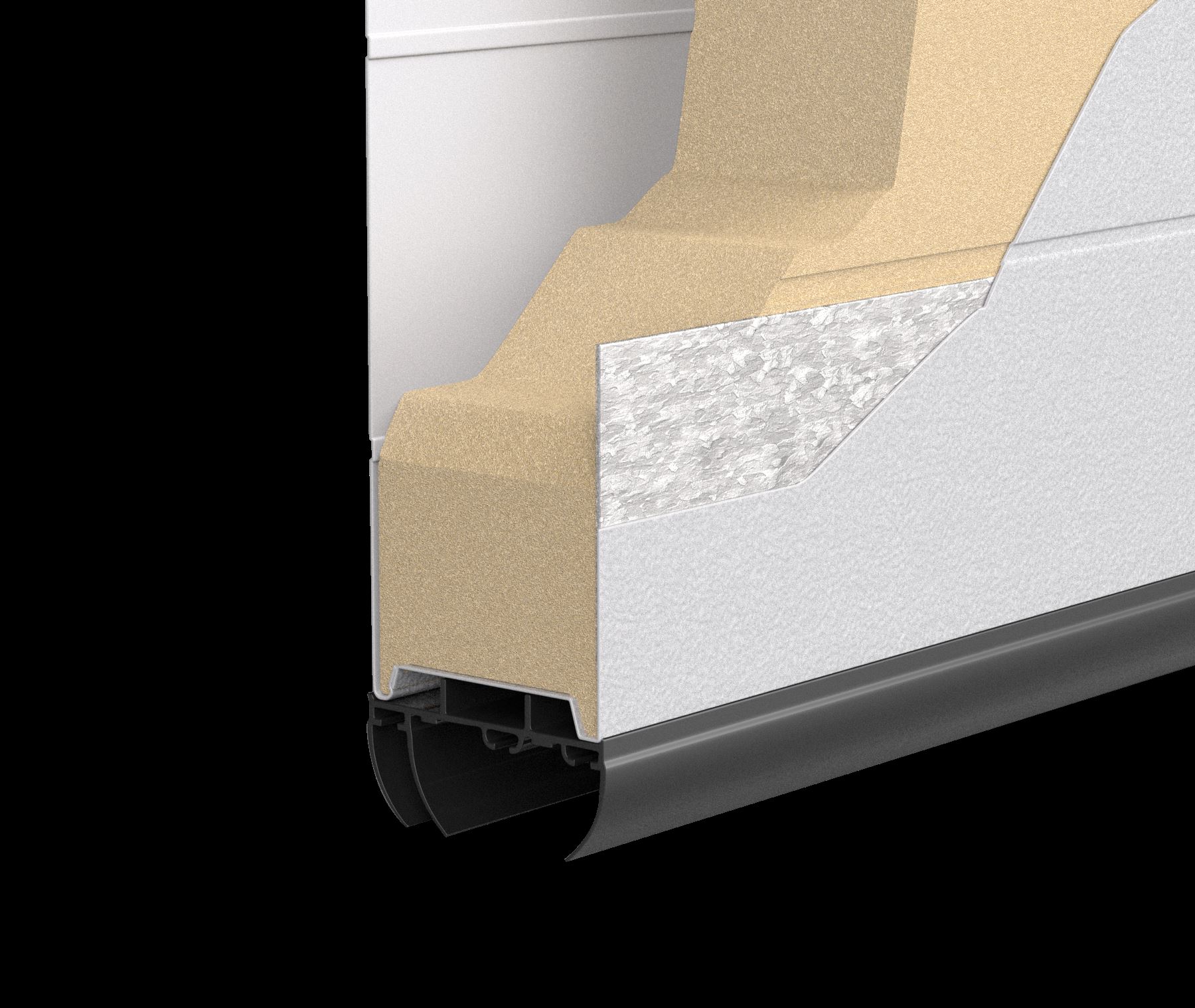

Constructon
3-Layer
Panel Options

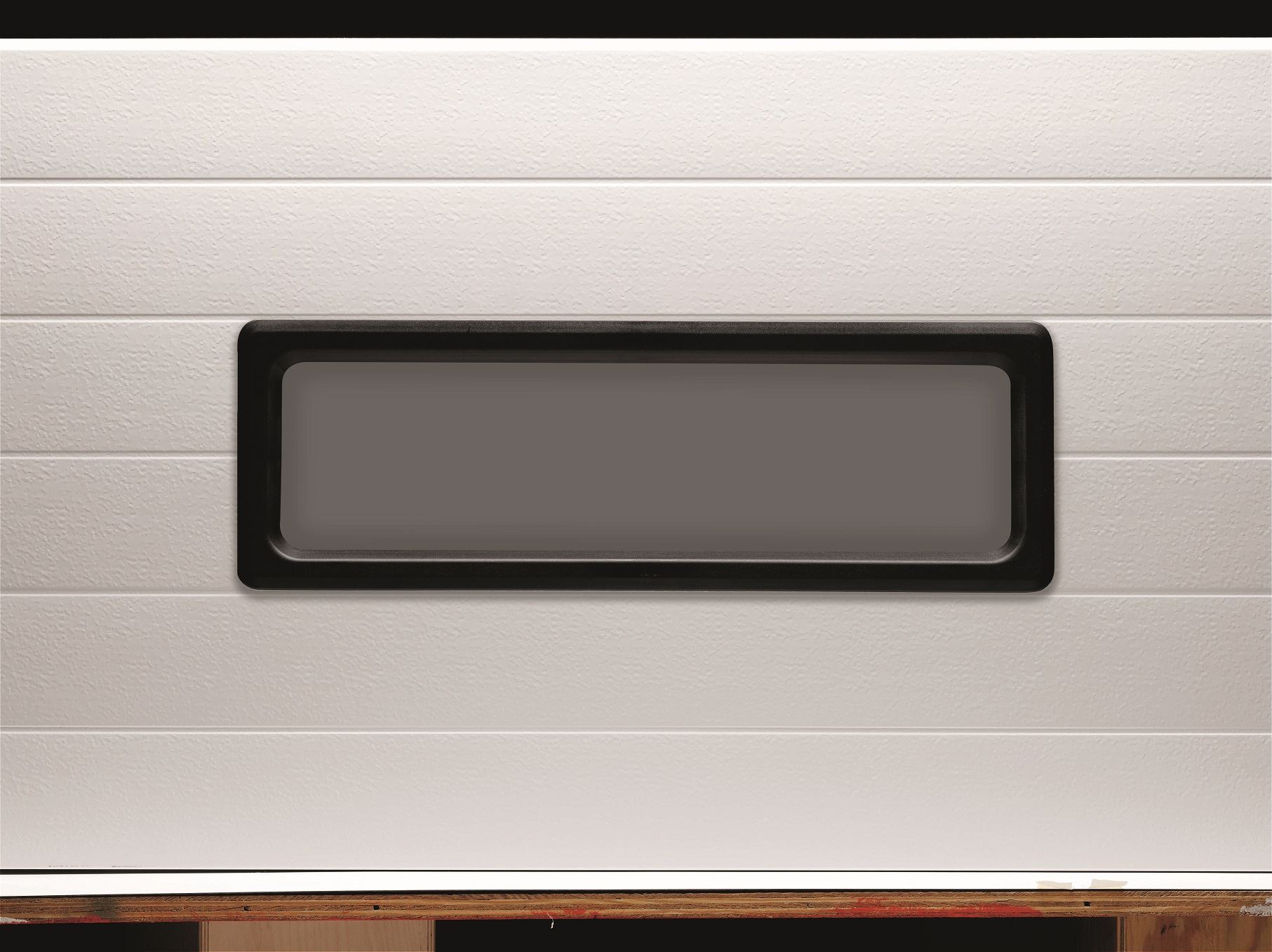

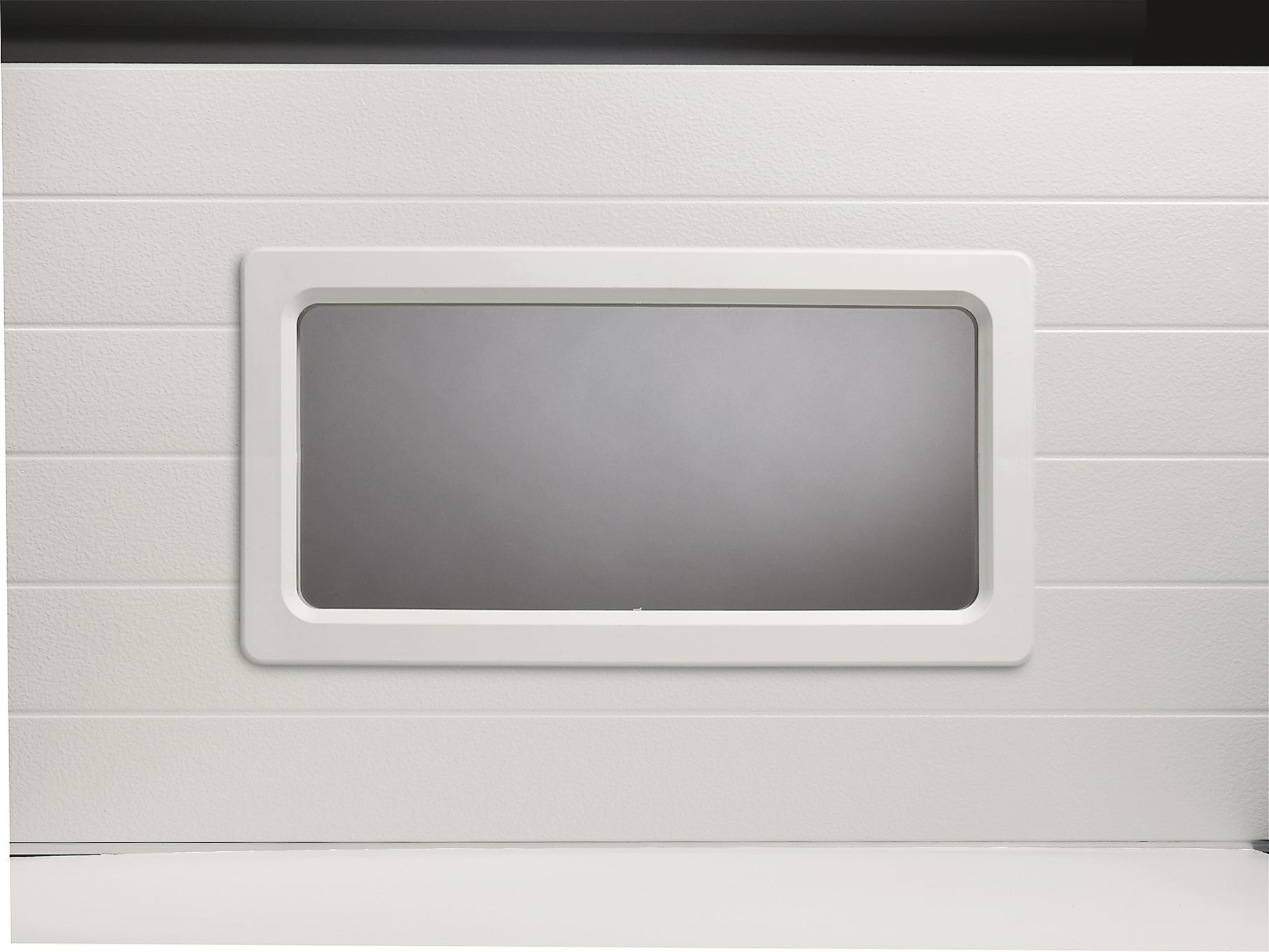

24” x 8” insulated24” x 12” insulated
Color Options
True WhiteSandtoneAmarr Commercial GrayAmarr Commercial Brown
