AlumiRamp -Telescopic Channel Ramp

DOWNLOADS

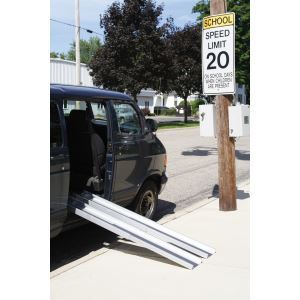

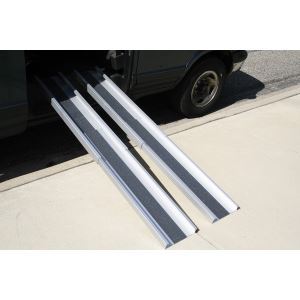

The TELESCOPIC CHANNEL RAMP is constructed of lightweight anodized aluminum with a black non-skid surface for traction. Useful for wheelchairs and some scooters, they have a wide 7 1/2" usable track. Each channel extends to nearly double its length.


Category: access ramps | commercial ramps | handicap ramps...



AlumiRamp
855 E Chicago Rd
Quincy, MI 49082
Tel: (800) 800-3864
Fax: (517) 639-4314

sales@alumiramp.com

https://www.alumiramp.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview


Telescopic Channel Ramp

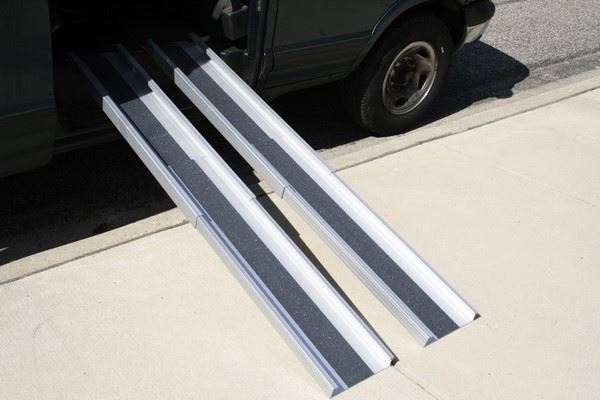

The TELESCOPIC CHANNEL RAMP is constructed of lightweight anodized aluminum with a black non-skid surface for traction. Useful for wheelchairs and some scooters, they have a wide 7 1/2" usable track. Each channel extends to nearly double its length.


See More


Specifications

MODEL

OPEN SIZE

CLOSED SIZE

WEIGHT

WEIGHT CAPACITY

USAGE

TCR067.5" W x 6' L7.5" W x 42" L30 lbs.600 lbs.curbs, 1-2 steps, minivans
TCR087.5" W x 8' L7.5" W x 54" L39 lbs.600 lbs.curbs, 1-3 steps, minivans
TCR0107.5" W x 10' L7.5" W x 70" L51 lbs.600 lbs.curbs, 1-4 steps, mini & full size vans

Standard sizes shown. Custom sizes available on ramps, platforms and steps.
