Overview


Aluminum Threshold Ramp

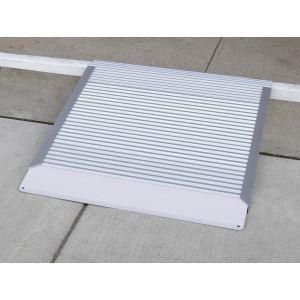

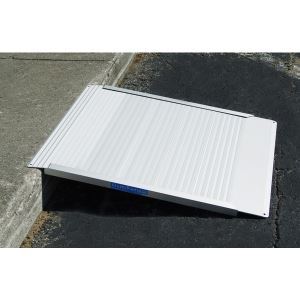

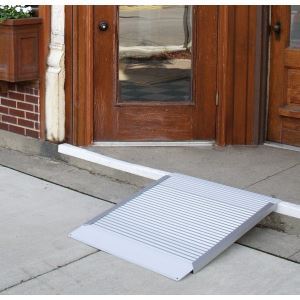

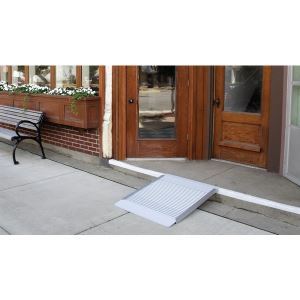

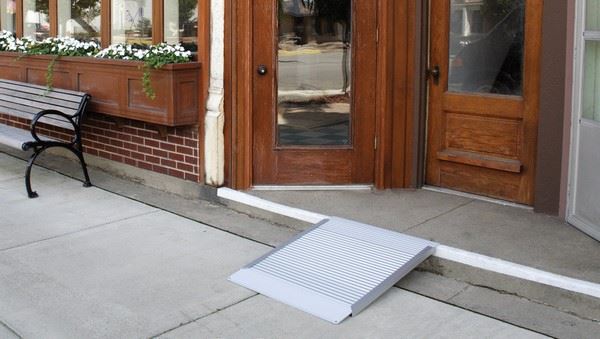

Our low profile aluminum THRESHOLD RAMP is ideal for use at doorways and thresholds from 1" to 4" in height. The 2" top lip seamlessly covers the existing threshold for a smooth transition and adjusts to varying heights. The welded construction and permanent skid resistant surface allow these ramps to be used inside or outside.


See More


Specifications

MODEL

SIZE

RISE GUIDELINES

WEIGHT

WEIGHT CAPACITY

TR06N30" W x 6" L1/2" to 3/4"6 lbs.600 lbs.
TR12N30" W x 12" L1" to 1 1/2"9 lbs.600 lbs.
TR18N30" W x 18" L1 1/2" x 3 1/2"13 lbs.600 lbs.
TR24N30" W x 24" L2" to 4 1/2"16 lbs.600 lbs.
TR36N30" W x 36" L3" to 5 1/2"19 lbs.600 lbs.
TR06W36" W x 6" L1/2" to 3/4"9 lbs.600 lbs.
TR12W36" W x 12" L1" to 1 1/2"12 lbs.600 lbs.
TR18W36" W x 18" L1 1/2" x 3 1/2"18 lbs.600 lbs.
TR24W36" W x 24" L2" to 4 1/2"24 lbs.600 lbs.
TR3636" W x 36" L3" to 5 1/2"28 lbs.600 lbs.

Standard sizes shown. Custom sizes available on ramps, platforms and steps.
