AlumiRamp -AlumiLite Folding Curb Ramp

DOWNLOADS

The portable ALUMILITE FOLDING CURB RAMP has all the features of the Solid Curb Ramp but folds in half for ease of carrying, and features an integrated handle and closing strap. The 29" width model allows the ramp to fit in vans with narrow doors.


Category: 107449 | ADA curb ramps | commercial ramps...

MasterFormat: Exterior Specialties | Manufactured Exterior Specialties | Modular Landing and Ramp Systems


View Product Details From Manufacturer


AlumiRamp
855 E Chicago Rd
Quincy, MI 49082
Tel: (800) 800-3864
Fax: (517) 639-4314

sales@alumiramp.com

https://www.alumiramp.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview


AlumiLite Folding Curb Ramp

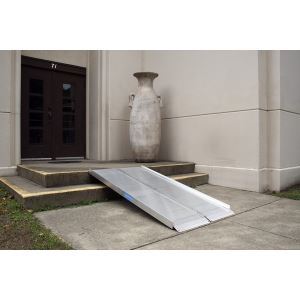

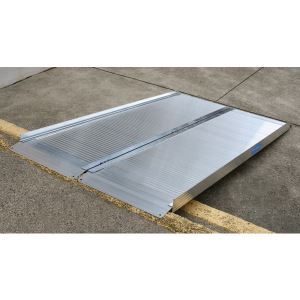

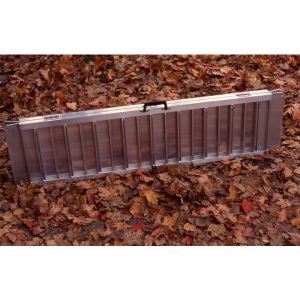

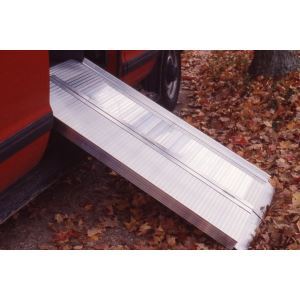

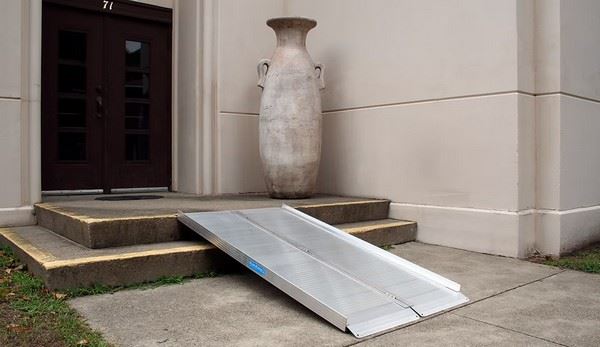

The portable ALUMILITE FOLDING CURB RAMP has all the features of the Solid Curb Ramp but folds in half for ease of carrying, and features an integrated handle and closing strap. The 29" width model allows the ramp to fit in vans with narrow doors. This style of ramp is sometimes referred to as a suitcase ramp.


See More


Specifications

MODEL

OPEN SIZE

CLOSED SIZE

WEIGHT

WEIGHT CAPACITY

ACR3FN29" W x 3' L15" W x 3' L18 lbs.600 lbs.
ACR4FN29" W x 4' L15" W x 4' L24 lbs.600 lbs.
ACR5FN29" W x 5' L15" W x 5' L30 lbs.600 lbs.
ACR6FN29" W x 6' L15" W x 6' L37 lbs.600 lbs.
ACR3FW36" W x 3' L18" W x 3' L20 lbs.600 lbs.
ACR4FW36" W x 4' L18" W x 4' L26 lbs.600 lbs.
ACR5FW36" W x 5' L18" W x 5' L32 lbs.600 lbs.
ACR6FW36" W x 6' L18" W x 6' L41 lbs.600 lbs.

Standard sizes shown. Custom sizes available on ramps, platforms and steps.
