Upenders (UE)
1 Year Parts and Labor\10 year, 250,000 Cycle Structural Warranty

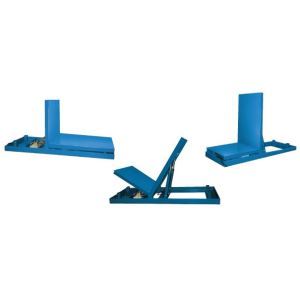

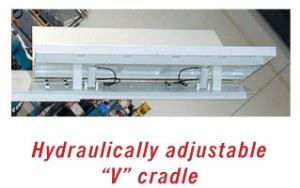

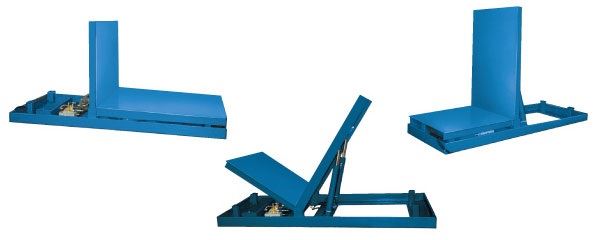

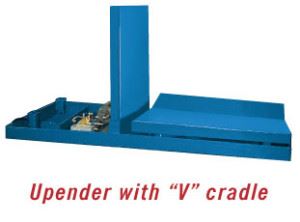

These units are tilters that tilt a full ninety (90) degrees. It is common to equip one platform with a “V” cradle to hold coils or rolls. When this is done we leave a gap of 6”, or whatever the customer specifies, to accommodate a pallet at the bottom face of the coil or roll. The upender machine is then called a roll “palletizer” or “depalletizer”. Lifts have been mounted on one of the platforms and so have turntables. If a turntable is mounted, it usually has to be mounted on slides so that it can be pulled away from the adjacent perpendicular face in order to turn a square cornered load. Inquire about these hydraulic upenders today.
SPECIAL FEATURES
- All of our upender machines have hydraulic return lines on the cylinders to preclude oil weepage.
- All of the controllers are Underwriter Laboratory listed assemblies.
- All shafts, axles and pins are hard chrome plated.
- All bearings are lifetime lubricated.
- hydraulic upenders are fully primed and finished with baked enamel.
