These lift and tilt platforms are optimized combination designs that are used where the lifting and tilting functions must be done independently. Inquire about our tilting lift tables for sale today.

SPECIAL FEATURES

These tilting scissor lift tables are equipped with the patented “Platform Centering Devices”, which doubles or triples lift life.
These units are equipped with single internally mounted power units.
All of the controllers are Underwriter Laboratory listed assemblies.
All hydraulic cylinders are machine grade with clear plastic return lines.
All pressure hoses are double wire braid with JIC fittings.
Lift and tilt tables are fully primed and finished with baked enamel.

See More

See Less

Specifications

SPECIFICATION TABLE FOR LIFT AND TILT UNITS

	Lift	Tilt	Tilt	Platform	Platform	Lowered	Raised	Lift	Tilt	Ship
Model	Travel	Angle	Capacity	Minimum	Maximum	Height	Height	Up Speed	Up Speed	Weight
PT-20243-I	24	30º	2000	30 X 36	48 X 60	14-1/4	38-1/4	10	6	800
PT-35243-I	24	30º	3500	30 X 36	48 X 60	14-1/4	38-1/4	15	12	890
PT-55243-I	24	30º	5500	30 X 36	48 X 60	14-1/4	38-1/4	22	12	925
PT-20363-I	36	30º	2000	30 X 48	48 X 60	14-1/4	50-1/4	11	5	910
PT-35363-I	36	30º	3500	30 X 48	48 X 60	14-1/4	50-1/4	17	9	1000
PT-55363-I	36	30º	5500	30 X 48	48 X 60	14-1/4	50-1/4	23	9	1045
PT-20483-I	48	30º	2000	30 X 60	48 X 60	14-3/4	62-3/4	18	5	1090
PT-35483-I	48	30º	3500	30 X 60	48 X 60	14-3/4	62-3/4	27	9	1195
PT-55483-I	48	30º	5500	30 X 60	48 X 60	14-3/4	62-3/4	37	9	1250
PT-20244-I	24	45º	2000	30 X 36	48 X 60	14-1/4	38-1/4	10	10	810
PT-35244-I	24	45º	3500	30 X 36	48 X 60	14-1/4	38-1/4	15	20	900
PT-55244-I	24	45º	5500	30 X 36	48 X 60	14-1/4	38-1/4	22	20	935
PT-20364-I	36	45º	2000	30 X 48	48 X 60	14-1/4	50-1/4	11	7	920
PT-35364-I	36	45º	3500	30 X 48	48 X 60	14-1/4	50-1/4	17	15	1010
PT-55364-I	36	45º	5500	30 X 48	48 X 60	14-1/4	50-1/4	23	15	1055
PT-20484-I	48	45º	2000	30 X 60	48 X 60	14-3/4	62-3/4	18	7	1100
PT-35484-I	48	45º	3500	30 X 60	48 X 60	14-3/4	62-3/4	27	15	1205
PT-55484-I	48	45º	5500	30 X 60	48 X 60	14-3/4	62-3/4	37	15	1260
PT-20246-I	24	60º	2000	30 X 36	48 X 60	14-1/4	38-1/4	10	13	815
PT-35246-I	24	60º	3500	30 X 36	48 X 60	14-1/4	38-1/4	15	27	905
PT-55246-I	24	60º	5500	30 X 36	48 X 60	14-1/4	38-1/4	22	27	940
PT-20366-I	36	60º	2000	30 X 48	48 X 60	14-1/4	50-1/4	11	10	925
PT-35366-I	36	60º	3500	30 X 48	48 X 60	14-1/4	50-1/4	17	20	1015
PT-50366-I	36	60º	5000	30 X 48	48 X 60	14-1/4	50-1/4	23	20	1060
PT-20486-I	48	60º	2000	30 X 36	48 X 60	14-3/4	62-3/4	18	10	1105
PT-35486-I	48	60º	3500	30 X 36	48 X 60	14-3/4	62-3/4	27	20	1210
PT-50486-I	48	60º	5000	30 X 36	48 X 60	14-3/4	62-3/4	37	20	1265

#caption#

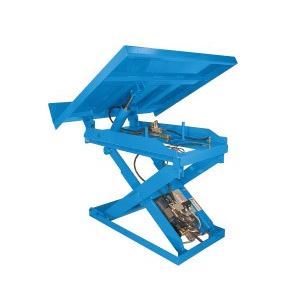

Advance Lifts, Inc. -Lift & Tilt (PT) Combination Series
