The electric hydraulic tilters are used in workstation applications to eliminate bending and stretching. The tilter machines tip containers to the workers, reducing fatigue and back injuries. Inquire about our electric tilting platforms today.

SPECIAL FEATURES

All of the controllers are Underwriter Laboratory listed assemblies.
The cylinders on 45 and 60 degree tilter machines are double acting machine grade.
All tilting platforms are fully primed and finished with a baked enamel finish.
All pressure hoses are double wire braid with JIC fittings.
All pressure hoses are double wire braid with JIC fittings.
All reservoirs are mild steel.
These units conform to all applicable ANSI codes.

See More

See Less

Specifications

SPECIFICATION TABLE

Model No.	Capacity	Lowered Height	Number of Cylinders	Degrees of Tilt	Min. Platform	Max. Platform	H.P.	Speed Sec.	Approx. Weight
TT-230-8	2000	8	1	30	24 X 36	48 X 48	1	5	400
TT-430-8	4000	8	1	30	24 X 36	48 X 48	1	9	440
TT-630-8	6000	8	1	30	24 X 36	48 X 48	1	9	465
TT-245-8	2000	8	1	45	24 X 36	48 X 48	1	7	405
TT-445-8	4000	8	1	45	24 X 36	48 X 48	1	15	445
TT-645-8	6000	8	1	45	24 X 36	48 X 48	1	15	470
TT-260-8	2000	8	2	60	30 X 36	60 X 60	2	10	410
TT-460-8	4000	8	2	60	30 X 36	60 X 60	2	20	450
TT-660-8	6000	8	2	60	30 X 36	60 X 60	2	20	475

#caption#

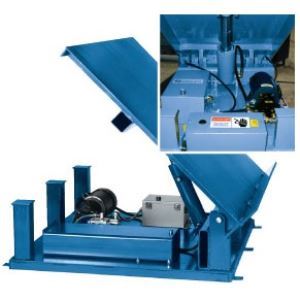

Advance Lifts, Inc. -Electric Tilters (TT)
