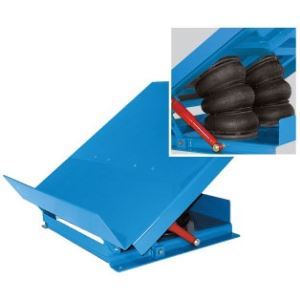

Air operated tilting machines offer the advantage of requiring no electrical connections. They operate on shop air with a minimum of 60 psi. The angle of tilt may increase as the load is decreased, which automatically rotates the bin toward the operator as it is unloaded. Inquire about these air operated tilt platforms today.

SPECIAL FEATURES

Air operated tilting machines are equipped with motion dampening shock absorbers.
All air springs have lifetime warranties.
These units are fully primed and then receive a baked enamel finish.
These units comply with all applicable ANSI codes.
All tilt platforms are equipped with safety maintenance locks.
Standard controls are hand valves mounted on pipe stanchions. (Foot operated controls are optional).

See More

See Less

Specifications

SPECIFICATION TABLE

Model	Capacity	Air Springs	Lowered Height	Tilt	Minimum Platform	Maximum Platform	Baseframe	Shipping Weight
ATI-135	1000	1	7-1/4	35	30 X 36	72 X 48	24 X 31-1/4*	300
ATI-235	2000	1	7-1/4	35	30 X 36	72 X 48	24 X 31-1/4*	310
ATI-335	3000	1	7-1/4	35	30 X 36	72 X 48	24 X 31-1/4*	315
ATI-435	4000	2	7-1/4	35	30 X 36	72 X 48	24 X 31-1/4*	320
ATI-535-D	5000	2	7-1/4	35	36 X 36	72 X 48	36 X 31-1/4	425
ATI-635-D	6000	2	7-1/4	35	36 X 36	72 X 48	36 X 31-1/4	430

#caption#

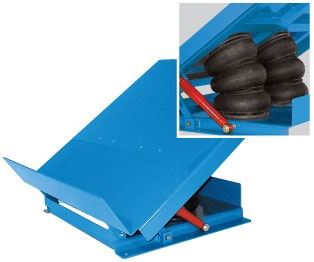

Advance Lifts, Inc. -Air Operated Tilters (ATI)
