These tilting scissor lift tables are designed to operate on shop air with no need for electricity. Each model has been optimized for minimum weight and maximum value. Inquire about these air operated lift and tilt tables for sale today.

SPECIAL FEATURES

Air operated lift and tilt tables are equipped with the patented “Platform Centering Devices”, which doubles or triples lift life.
These tilting scissor lift platforms are fully primed and finished with a baked enamel finish.
All units are equipped with sealed ball bearing wheels.
All shafts and axles are chrome plated 100,000 psi stressproof steel.
All pivot bearings are lifetime lubricated.
All tilters are equipped with (2) shock absorbers to smooth operations.
Tilting scissor lift tables are equipped with a pressure safety relief and a safety orifice speed control to regulate down speed in case of supply line hose rupture.

See More

See Less

Specifications

SPECIFICATION TABLE FOR LIFT AND TILT UNITS

		Platform	Platform	Lowered			Ship
Model	Capacity	Minimum	Maximum	Height	Travel	Tilt	Weight
ATT-1524	1500	30 X 48	48 X 48	15	24	35º	850
ATT-2524	2500	48 X 48	60 X 60	15	24	35º	1360
ATT-3524	3500	48 X 48	60 X 60	15	24	35º	1380
ATT-5024	5000	48 X 48	60 X 60	16-1/4	24	35º	1625
ATT-6024	6000	48 X 48	60 X 60	17-1/4	24	35º	1715

#caption#

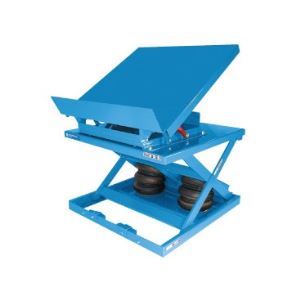

Advance Lifts, Inc. -Air Operated Lift & Tilt (ATT) Series
