FW-5050-ACF Acoustical Fire-Rated Insulated Access Door
Model Number: Alpha Cantilever Sliding Gate
FW-5050-ACF Introduction

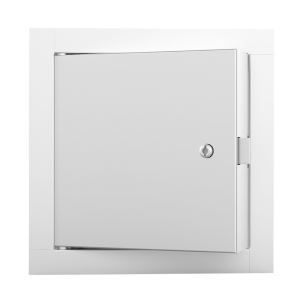

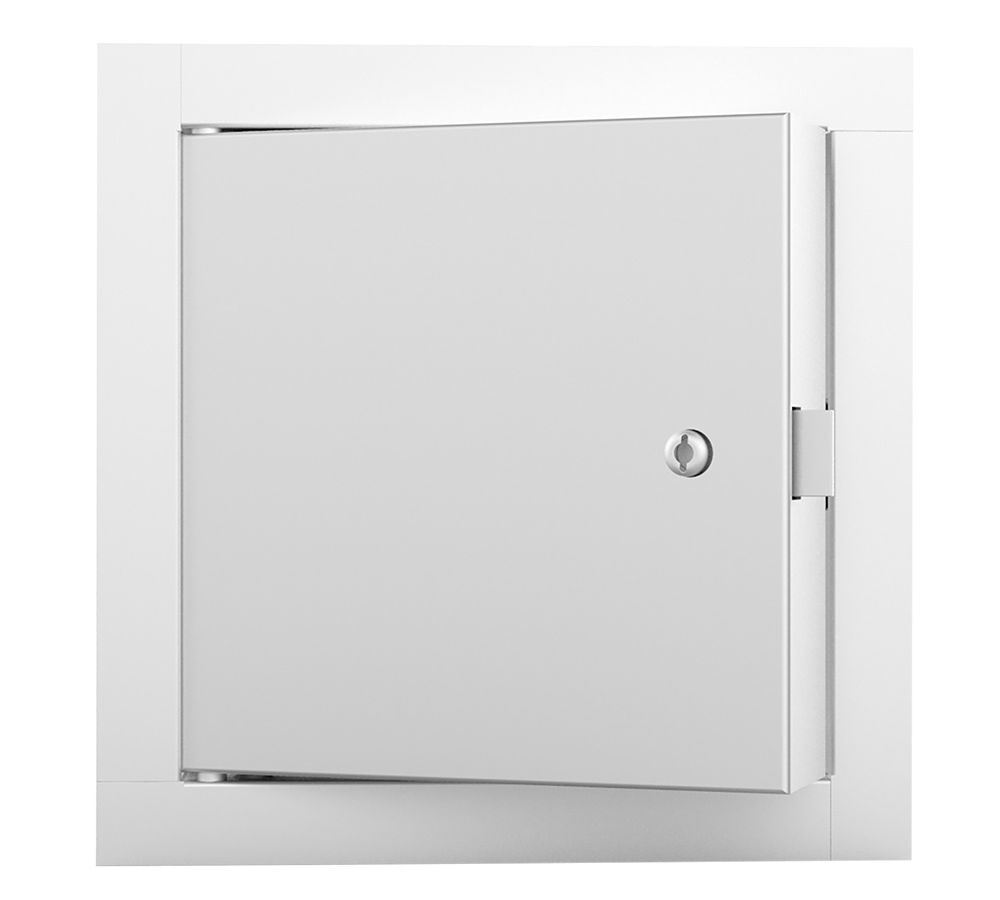

The Acudor FW-5050-ACF is a fire-rated, insulated, metal access door with acoustical properties. The FW-5050-ACF is designed for walls and ceilings when temperature rise or heat transmission is a factor. The FW-5050-ACF has been tested for sound transmission to STC29 and OITC24. FOR VERTICAL INSTALLATION ONLY.

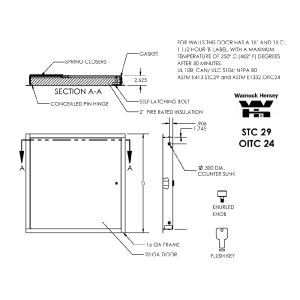

- Door / Door Frame:
Steel or Stainless Steel: 20 gauge door, 16 gauge mounting frame. Door filled with 2” thick fire-rated insulation. Flange to be 1” wide - Hinge:
Concealed - Gasket:
Smoke & draft control gasket. - Fire Rating (Walls)
Warnock Hersey fire-rated up to 1.5 hours, certified to UL 10B and CAN/ULC S104 1.5 hour neutral pressure fire-rating. Temp rise 30 minutes. 250º C (482º F) Max. ASTM E90:2009. - Sound Transmission Rating:
ASTM E413 STC29 and ASTM E1332 OITC24 - Standard Compliances
UL10B; CAN/ULC S104; NFPA 80. - Standard Latch:
Universal self-latching bolt, operated by either a knurled knob or flush key. When master keying is requred, doors can be prepared for mortise cylinder locks. - Finish:
Baked white prime coat (Additional finish paint is recommended for superior corrosion resistance)
Product Highlights For Vertical Installation Only
This door should be used in walls when temperature rise or heat transmission is a factor
Provides acoustical properties as well as a re-rating
Sound Transmission Class STC29 and OITC24
