Quilted Curtain S.T.O.P.: Soundproof Curtains & Barriers
Absorptive/Noise Barrier Quilted Soundproofing Curtains
- For Unusual Conditions
- Cost Effective
- Water & Chemical Resistant

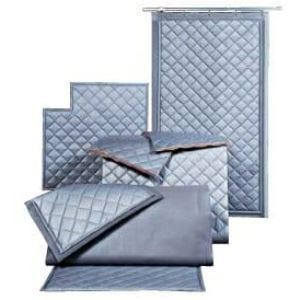

Quilted Curtain S.T.O.P. is a noise barrier and sound absorber, designed to enclose different types of noise sources or work areas. It can be custom-made to suit any application and is suitable for industrial, commercial, and residential settings. The curtain is an effective and durable sound absorber that comes with a mass-loaded vinyl barrier option. The product is available in 1-inch and 2-inch thicknesses. The curtain panels are constructed with grommets across the top and hook-and-loop fasteners along the vertical edges.
Product Specs MATERIAL
Quilted fiberglass core with vinyl-coated fiberglass-cloth facing and vinyl noise barrier
PATTERN
Quilted Diamond Pattern
FEATURES
Effective and durable sound absorber with mass loaded vinyl barrier option.
APPLICATIONS
Used as an economical, effective noise barrier and sound absorber to enclose many types of noise sources or work areas. The sound barrier curtains can be custom fabricated for almost any application. These noise-blocking blankets can be used in industrial, commercial & residential applications.
THICKNESS
BSC-25: Nominal - 2”
BBC-13: Nominal - 1”, 2”
SIZES
BSC-25 Curtain (Quilting on Both Sides) - Standard: 48″ Wide and Lengths up to 25′
BBC-13 Curtain (Quilting on One Side - Standard: 54″ Wide and Lengths up to 25′
Custom sizes of quilted soundproof curtains are also available.

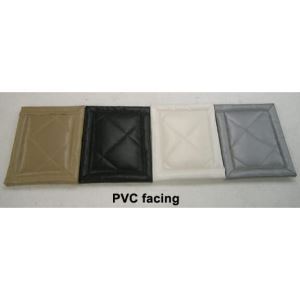

COLOR
Standard PVC Facing - Silver
Optional PVC facing - Black, Tan, White
FLAMMABILITY
Class A Fire Rated per ASTM E84
INSTALLATION
Hook and loop fasteners, grommet hangers, curtain spanport hardware.
GROMMETS
Standard Brass. (Stainless steel upgrade available upon request) ID: 9/16″ Grommet Center 1 ¼″ down from top of panel
