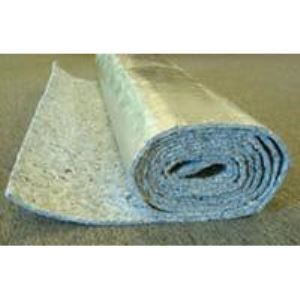

Acoustical Surfaces, Inc. -Quiet-Duct Wrap™ Recycled Cotton Acoustical Duct Wrap Liner

DOWNLOADS
Recycled Cotton Acoustical Duct Wrap Liner
  • Excellent Noise Absorption
  • Reduces Unwanted Heat
  • No Itch or Skin Irritation
  • Resist Microbial Growth
  • Easy to Handle & Install
  • Durable & Long Lasting

Category: absorbers | acoustical cotton insulation | duct wrap...

MasterFormat: Acoustic Insulation | Acoustic Blanket Insulation | HVAC Insulation...


View Product Details From Manufacturer


Acoustical Surfaces, Inc.
123 Columbia Court North
Suite 201
Chaska, MN 55318
Tel: (800) 854-2948
Fax: (952) 448-2613

sales@acousticalsurfaces.com

https://www.acousticalsurfaces.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview


Quiet-Duct Wrap™ Recycled Cotton Acoustical Duct Wrap Liner

Recycled Cotton Acoustical Duct Wrap Liner

  • Excellent Noise Absorption
  • Reduces Unwanted Heat
  • No Itch or Skin Irritation
  • Resist Microbial Growth
  • Easy to Handle & Install
  • Durable & Long Lasting
Product Specs

Description

Quiet-Duct Wrap, the Thermal/Acoustic Insulation is a lightweight, foil faced, fire retardant blanket-type insulation with multiple uses. The Duct-Wrap insulation offers excellent thermal and acoustical performance and carries a Class-A Fire rating.
Made from durable natural fibers, Quiet-Duct Wrap insulation contains no fiberglass and does not itch or cause skin irritation. The fibers used to manufacture the Duct-Wrap insulation offer excellent sound absorption properties and every fiber used is individually treated with an EPA registered anti-microbial agent that offers excellent protection from mold, mildew, fungi, and pests as well as fire resistance.
This foil-faced duct insulation's pure aluminum barrier reflects unwanted radiant heat and offers excellent protection from air currents, moisture, and vapors.

Sizes

Standard Size - 48″ wide × 15′ long. The foil-faced duct insulation is also available in 48″ wide × 75′ size (minimum quantities may apply, please call for details)

Thickness

3/8″

Uses

Use this foil-faced duct insulation in homes, offices or wherever unwanted heat or noise control is necessary.


See More


Specifications

Physical Properties
PROPERTIESPERFORMANCETEST METHOD
Surface Burning Characteristics
(Fire Hazard Classification)		Flame Spread 10 (Class 1)
Smoke Developed 20 (Class 1)		ASTM E 84
UL 723
Zero Surface Burn RateExceeds Standard
(Less than 1/5 in./min.)		FMVSS 302
Facing99% Pure Aluminum
Reinforced Foil
Foil Emissivity.03ASTM E 408
Foil Reflectivity97%ASTM E 408
Tensile Tear Strength100 lbs.
Pad Weight3 oz./s.f.
Acoustical Performance
Sound Absorption was tested in accordance with ASTM C 423
Using a Type A mounting per ASTM E 795
ProductAbsorption Coefficients @ Octave Band Frequencies (Hz)
Quiet-Duct
3/8″ Pad		125250500100020004000NRC
.12.10.23.56.81.89.45
Thermal Technical Data
Tested in accordance with ASTM C177 & ASTM C518
POSITION
UPDOWNHORIZONTALR-VALUE PER INCH
7.8516.399.913.91
The higher the R-Value, the greater the insulating power.
Available Sizes
ProductFoil SidesLengthLengthWidthWidthThicknessThicknessSQ. FT/BundleSQ. FT/BundleWeightWeight
Ft.(m)Ft.(m)Inch(mm)Ft.(m)Lbs.(kg)
QDW-475Single Side7522.8641.23/8″9.5300916529.5
QDW-415Single Side154.641.23/8″9.56018167.3
QUIET-DUCT Accessories

Heavy Duty Wide Web Spray Adhesive

Excellent performing adhesive ideal for installing QUIET-DUCT Wrap and many other applications

Insul-Tape™

Ideal for joining seams, sealing edges and joints, waterproofing and mending QUIET-DUCT Wrap.
