Polyester Acoustic Ceiling Clouds

Poly Max polyester acoustical ceiling Cloud panels are non-allergenic, non-toxic, fungal-resistant, and do not contain chemical irritants or formaldehyde.


Category: 095100 | absorbers | ceiling...

MasterFormat: Ceilings | Acoustical Ceilings | Acoustic Treatment...



Acoustical Surfaces, Inc.
123 Columbia Court North
Suite 201
Chaska, MN 55318
Tel: (800) 854-2948
Fax: (952) 448-2613

sales@acousticalsurfaces.com

https://www.acousticalsurfaces.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview


Poly Max™ - Polyester Acoustic Ceiling Clouds

Polyester Acoustic Ceiling Clouds

Poly Max polyester acoustical ceiling Cloud panels are non-allergenic, non-toxic, fungal-resistant, and do not contain chemical irritants or formaldehyde. Decorative and tackable, apply the acoustical cloud panels to ceilings to tame echo and reverberation. Available in a variety of colors or printed with custom graphics to blend into any decor. Material: 100% polyester (60% PET-recycled fiber, 40% PET-virgin fiber). Poly Max passes the CDPH V1.2 test standard for low VOC emissions and can contribute to LEED V4.1 EQ Credit: Low-Emitting Materials.

Product Specs

Applications

Schools and civic centers (gymnasiums, classrooms, auditoriums, music practice and band rooms), restaurants and bars, sports and entertainment venues, convention centers, houses of worship, shooting ranges, manufacturing and industrial facilities, parking garages, airports, and more.

Material Composition

100% Polyester (60% PET-recycled fiber, 40% PET-virgin fiber)

Thickness

1"
2"

Density

1": 7.5 lb. pcf
2": 5 lb. pcf

Size

Standard Sizes
24" x 48"
48" x 96"
Custom Sizes
Up to 48" x 96"

Color

See color options tab for full color availability.

Installation Method

RotoFast Cloud Anchors, Gripple Angel Mini Helix Anchors, 15/16 T-bar Glued and Screwed to Back

Material Performance

Fire Performance

Class A Fire Rated per ASTM E84

Light Reflectance

1" White - 83
2" White - 82

Environmental

Passes CDPH Standard Method V1.2-2017 (VOC Emissions)
Passes ASTM C1338 test (No fungal growth)


See More


Specifications

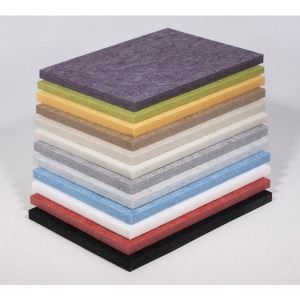

1" and 2" Color Options
WhiteBeigeBlack
Printed Graphics
Acoustical Specs
Poly Max - Octave Band Absorption Coefficients
Panel ThicknessTesting Mount125 Hz250 Hz500 Hz1 kHz2 kHz4 kHzNRC Rating
1/2″A0.010.070.260.540.780.940.40
1″A0.080.200.590.941.041.020.70
1″E4000.440.800.730.991.051.010.90
2″A0.310.581.081.111.041.040.95
