Acoustical Surfaces, Inc. -Noise S.T.O.P. Noise™ Barrier Melamine Composite

DOWNLOADS

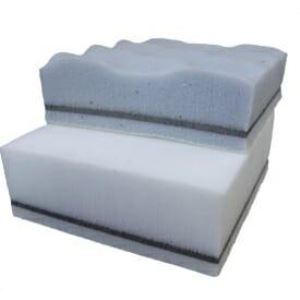

Melamine Foam Composite Noise Barrier Panel
  • Sound Absorber
  • Noise Barrier
  • Decoupler Isolates Vibration
  • Class A Fire Rated
Product Specs

Material


Category: acoustical ceilings | ceiling | ceiling tiles...

MasterFormat: Ceilings | Acoustical Panel Ceilings | Acoustical Tile Ceilings...



Acoustical Surfaces, Inc.
123 Columbia Court North
Suite 201
Chaska, MN 55318
Tel: (800) 854-2948
Fax: (952) 448-2613

sales@acousticalsurfaces.com

https://www.acousticalsurfaces.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview


Noise S.T.O.P. Noise™ Barrier Melamine Composite

Melamine Foam Composite Noise Barrier Panel

  • Sound Absorber
  • Noise Barrier
  • Decoupler Isolates Vibration
  • Class A Fire Rated
Product Specs

Material

1″ Melamine Acoustical Foam, Bonded to 1/8″ - 1lb/sq.ft., Mass Loaded Vinyl Noise Barrier with 1/4″ Melamine Foam Vibration Decoupler

Pattern

Convoluted or Flat Surface Pattern

Applications

Ideally suited to line equipment enclosures, and walls and ceilings of utility or mechanical rooms to absorb and contain the noise source. Use this melamine foam composite panel where sound absorption, sound insulation, noise reduction and vibration control are needed.

Thickness

1-3/8″

Nom. Sizes

2′×4′ (11.33 lbs per melamine panel) Special Sizes Available Upon Request

Colors

Standard - Natural White or Light Grey
Latex - Black, Light Grey, Almond
Paint - Black, Brown, Beige, Light Gray (Custom Colors Also Available)

Flammability

Class A Fire Rated per ASTM E84

Installation

ASI S.T.O.P. Noise Acoustical Adhesive. Use Mechanical Fasteners for Overhead Melamine Foam Sound Absorbing Applications


See More


Specifications

Melamine Composite Barrier - Flat Faced - Sound Absorption/Noise Reduction
Type B Mounting - ASTM C423-90a
125Hz250Hz500Hz1KHz2KHz4KHzNRC
Melamine Composite0.330.240.631.231.351.140.85
Melamine Composite Barrier - Sound Transmission Data
ASTM E413-73
125Hz250Hz500Hz1KHz2KHz4KHzSTC
Melamine Composite17222032314328
