Noise S.T.O.P.™ Acoustic Ceiling Sound Barrier Tiles

Super Soundproofing Ceilings Tiles Many Surfaces Options

Noise S.T.O.P.™ Suspended Ceiling Sound Barrier Tiles offer excellent acoustic insulation and sound transmission with customized options to enhance the visual aesthetics while satisfying acoustical requirements. Available in standard 2′×2′, 2′×4′ or custom sizes. Installs in T-Bar Grid.

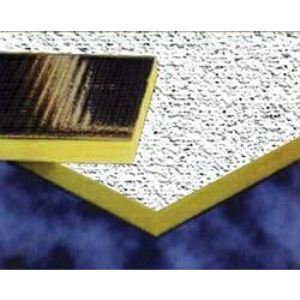

Noise S.T.O.P.™ Sound Barrier Suspended Ceiling Tile features a 1 lb./sq. ft. foil-backed mass-loaded vinyl barrier laminated to 1″ and 2-1/8″ glass fiber core with white cleanable face. These soundproof ceiling tiles offer high STC and NRC values for acoustic insulation and are available in a variety of finishes.

• High Acoustical Performance & Sound Insulation
• Good Light Reflectance
• Cost-Effective - to Reduce Reverberation

Material

Fiberglass core with F/G fabric facing great for sound absorption.

Applications

Any place where high performance acoustics and sound insulation is required.

Size

Nominal 2′×2′, 2′×4′ or custom sizes. Installs in T-Bar grid.
Part #
BARCT-122 - 1-1/8″ Thickness - 2′×2′
BARCT-222 - 2-1/8″ Thickness - 2′×2′
BARCT-124 - 1-1/8″ Thickness - 2′×4′
BARCT-224 - 2-1/8″ Thickness - 2′×4′

Installation

Lay-in grid

Flammability

ASTM E-84 Class 1-A, Nonflammable.

Performance

1" Thickness NRC = 0.85, STC = 26; 2" Thickness NRC = 1.15, STC = 26
