Climate Seal™ Acoustic Series Soundproof Window Insert

Sick of sound disturbing your peace and quiet? Climate Seal Acoustic Soundproof Window Inserts can help you keep the outside noise, and preserve your quiet. These window inserts can be customized, and once the window frame is mounted, they are simple to install and remove. They also sit close to windows and match style, making the inserts nearly invisible, maintaining the aesthetic of your home. Some other features of Climate Seal window inserts are:

Features:

  • High-performance acoustical rating
  • Filters 85% of the harmful UV light spectrum
  • Significantly cheaper and easier than replacement windows
  • Increases thermal efficiency of any existing window
  • Extremely easy to install and remove for cleaning or fresh air
  • Custom-made for standard and unique window shapes, styles, and sizes
  • Easy egress in emergency situations

Born from our original Climate Seal™ Thermal Series, the Climate Seal™ Acoustic Series storm window insert specifically focuses on noise reduction across all frequency levels with exceptional performance while maintaining its discreet look and superior thermal properties. While the Climate Seal™ Thermal Series window inserts reduce noise pollution by up to 60% from pre-existing levels, the Acoustic Series storm window inserts boasts up to 80% sound reduction with an STC rating as high as 49, which rivals or exceeds the performance of many other competitive products and does so at a significantly reduced cost and aesthetic impact.

The Climate Seal™ Acoustic Series model of noise reduction window inserts is an ideal choice for many residential, commercial and historical applications. Whether you live on a busy street with traffic noise, airplane flight path or wish to maintain the comfort level of your hotel guests, the Climate Seal™ Acoustic Series storm window insert will perform extremely well, regardless of the application. Other acoustical soundproofing window products have you call for a secondary and permanent window layer, which we feel is excessive, bulky and unattractive without an appreciable improvement above and beyond our Climate Seal™ Acoustic Series system. The Climate Seal™ Acoustic Series storm window insert is easily removed in seconds for access to the primary window for cleaning or maintenance and is just as easily re-applied to protect you from irritating and excessive decibel levels.

Below is a comprehensive breakdown of our soundproofing windows treatment performance ratings and results. We’ve also included a “before & after” scenario on (3) different primary window applications to illustrate how effective the Climate Seal™ Acoustic Series soundproofing window inserts can be when applied over your primary window. And, just like all of our other Climate Seal™ family of products, the Acoustic Series storm window insert is fully customizable. Custom paint colors, glazing options, and custom shapes and sizes are all available to ensure performance and aesthetics are not compromised.


See More


Specifications

Climate Seal Sound Rating - STC
Window AssemblySTC*Test
Double Hung Window24
Double Hung Window w/Climate Seal Insert37ASTM E90
Triple Casement Window27
Triple Casement Window w/Climate Seal Insert44ASTM E90
Store Front/Hotel Fixed Window33ASTM E90
Store Front/Hotel Fixed Window
w/Climate Seal Insert 2.5″ AS
38ASTM E90
Store Front/Hotel Fixed Window
w/Climate Seal Insert 4.5″ AS
46ASTM E90
Store Front/Hotel Fixed Window
w/Climate Seal Insert 6.5″ AS
51ASTM E90
*STC (Sound Transmission Class) - a rating defined by ASTM E90 to represent how well a building partition attenuates airborne sound. The higher the STC number, the greater amount of sound that is lost. This rating targets a noise spectrum surrounding speech levels.

Climate Seal Window Insert

Molding Profile

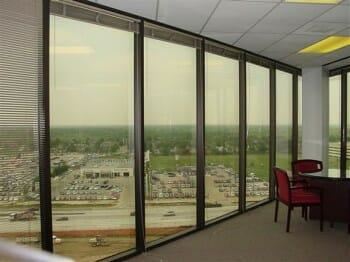

Climate Seal™ Acoustic Series soundproofing window insert applied over aluminum curtain wall construction.
Houston, TX Balance America Office Suites

Climate Seal™ Acoustic Series soundproof window insert applied over existing storefront glass for maximum sound protection from street traffic
Ipswich, MA

Climate Seal™ Acoustic Series window insert for a residential triple wide double-hung application.
Charlotte, NC

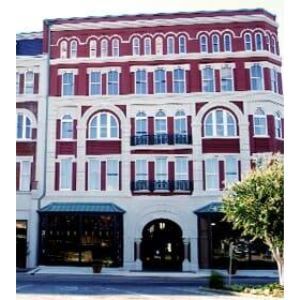

Climate Seal™ Acoustic Series soundproof window insert applied over historic wooden windows.
Ocean Springs, MS
Mary O’Keefe Cultural Center

Superior
Climate Seal™ Acoustic Series
window insert. Easily removed for cleaning of the primary window while retaining exceptional performance.

Inferior
X-brand permanent acoustic window. 3X thicker aluminum fixed window eliminated the ability to access the primary window when needed. Performance not equivalent to Climate Seal™ Acoustic Series window insert.

In-Jamb Mounting
WINDOWS INSTALLED (shown above) - In-Jamb mounting style where the Climate Seal™ window sits inside of the window jamb itself, much closer to the existing window.

Surface Mounting

FRAME ONLY (shown above) - Surface mount style installation where the Climate Seal™ window is mounted on the surface of the existing window frame. This mounting style is preferred because of the increased amount of airspace, which allows for maximum sound reduction between the existing window and the Climate Seal™ window insert.
