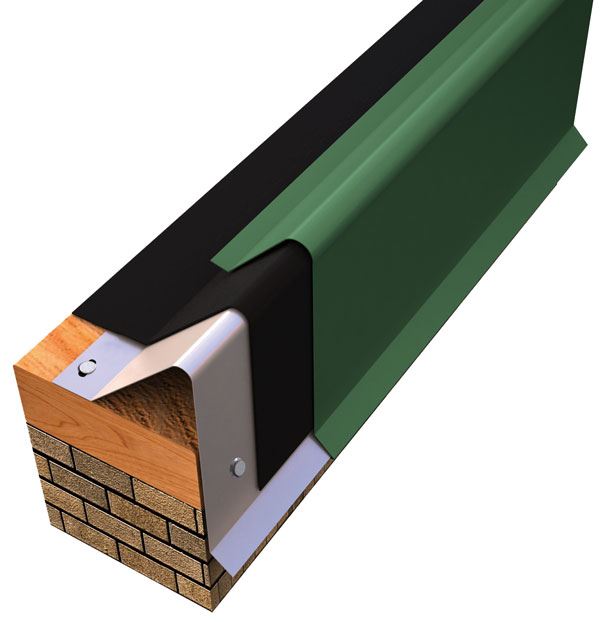

Perma-Tite System 200 Fascia Single-Ply Application, Crimp-On Version

This Perma-Tite Fascia uses a crimping method for securement, for those installers who prefer a more traditional approach to edge flashing details. It features dual attachment points on both the face and roof deck allow for added flexibility when accommodating roof irregularities. With no exposed fasteners and no unsightly cover plates, Perma-Tite Fascia will complement the building’s aesthetics, while also being fast and easy to install.

Features / Benefits

Warranty:

The 20 Year, 120 mph Perma-Tite Wind Warranty is available on orders to meet a project's specification. It provides a maximum of 20 years, 120 mph coverage for the repair or replacement of any portion of the roof edge system that has failed due to a defect in Metal-Era supplied materials.

Testing:

• Tested per ANSI/SPRI/FM 4435/ES-1 Standard to a design pressure of 196 lbs./ft² to comply with the International Building Code.
• Factory Mutual approved for wind uplift protection.

Standard Sizes:

Sizes range from 5" up to 12 ½" face heights to accommodate multiple nailers and coverage requirements.

• 5"
• 6 ½"
• 8"
• 9 ½"
• 11"
• 12 ½"

Available Materials:

Its unique design allows for covers to be manufactured in 24 ga steel, .040", .050" and .063" aluminum.

Splice Plates:

Interlocking, concealed splice plate design prevents splice plate migration under the fascia panels. This creates a more aesthetically pleasing design compared to traditional cover plates or lap joints at the seams.

Watertight:

Non-penetrating design eliminates the need for stripping-in or heat welding that is typical of many other roof edge designs. Watertight integrity is not compromised by improper flashing procedures, failed adhesives or lap sealants.

Competitively Priced:

The installed cost rivals even light gauge roof edge systems fabricated locally or in a roofer’s shop.

Efficient Design:

This fascia is provided in 12'-0" lengths with pre-punched fastening holes in the galvanized waterdam to ensure correct fastener placement and spacing. The raised button-hole on the vertical face of the waterdam makes it easier to install.

Colors:

Choose among a wide range of standard colors and finishes that meet your job requirements. A 30 year Kynar 500® finish warranty is included on coil-coated standard colors. Custom post-coated Kynar 500® colors are available with an included 10 year Kynar 500® finish warranty or a 20 year Kynar 500® finish warranty is available upon request.

Anodized finishes are also available and come with a 5 year warranty (no warranty available for coil anodized finishing. Post-coat/Class 1 Batch Anodized is available with a 5 Year warranty with an option to increase to a 10 Year warranty for an upcharge).

Custom Capabilities:

Radius and specially fabricated products are available to meet the unique needs of each project.

Accessories:

Factory fabricated miters, scuppers and drainage accessories provide a cleaner, more aesthetically pleasing appearance. This eliminates the need for field fabrication, providing time and labor savings.

Also Included:

All splice plates are included and will arrive to the job site with the product.
