Overview


Vertical Shades - markilux 710 / 810

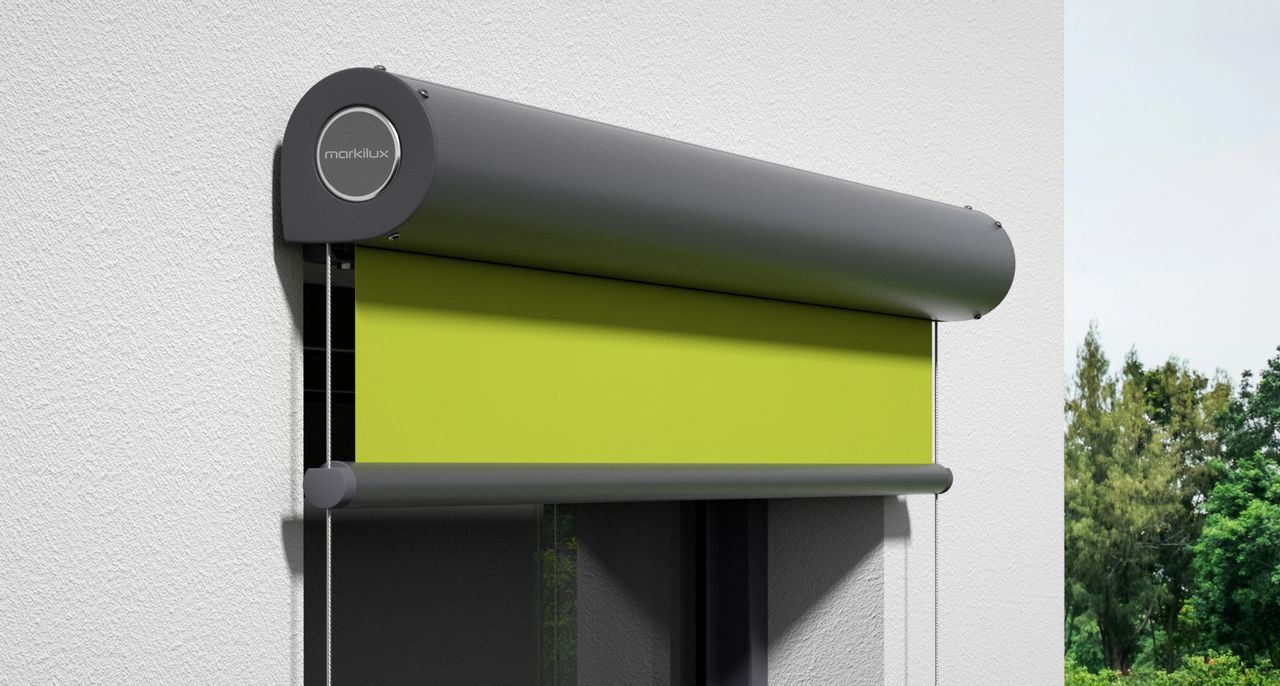

The markilux 710 is a vertical awning with unobtrusive cable guide and cover tensioner by gravity, perfect for any window with areas up to 17.5 m². The fabric cover is optimally protected by the fully enclosing cassette. The vertical blaind is driven by a winding handle on the outside as standard, but can also be operated from the back or inside as an option. In addition, the vertical blaind can be extended and retracted with motors on request.

Your advantages

Small cassette profile for a discreet look

Unobtrusive lateral cable guide

Optional interior operation of the winding handle from the building

Cover tensioning by gravity

Features of the markilux 710

Vertical awnings for windows offer you double protection: on the one hand, they serve as an ideal privacy screen and provide more privacy. On the other hand, vertical blinds for windows offer an easy way to regulate the temperature indoors. Specifically, you benefit from the following features of markilux 710:

A vertical awning like the markilux 710 should not only provide sun and privacy, but also be a perfect visual addition to your home. The vertical blaind awning markilux 710 can be covered with different awning covers to perfectly match the style of your home. Find your favorite fabric from over 200 fabric patterns in our awning fabric finder. On request, we also produce individual awning fabrics according to RAL colors.

Choose between different types of fabrics that offer you various advantages such as air permeability, water repellency, heat reflection or light transmission. In addition, you have the option to order individual awning fabrics as samples before making your decision. This way you can take a closer look at the color, feel and pattern and find the optimal combination.

In addition to the awning cover, you can also determine the color of the frame for our vertical cassette awnings: The markilux 710 has a square cassette (95 x 95 mm) and is equipped with high-quality stainless steel cables that are sheathed in plastic. You decide how you want your new markilux awning to be equipped. If you need help configuring, our customer service is here for you. Feel free to contact us by phone or email.


See More


Specifications

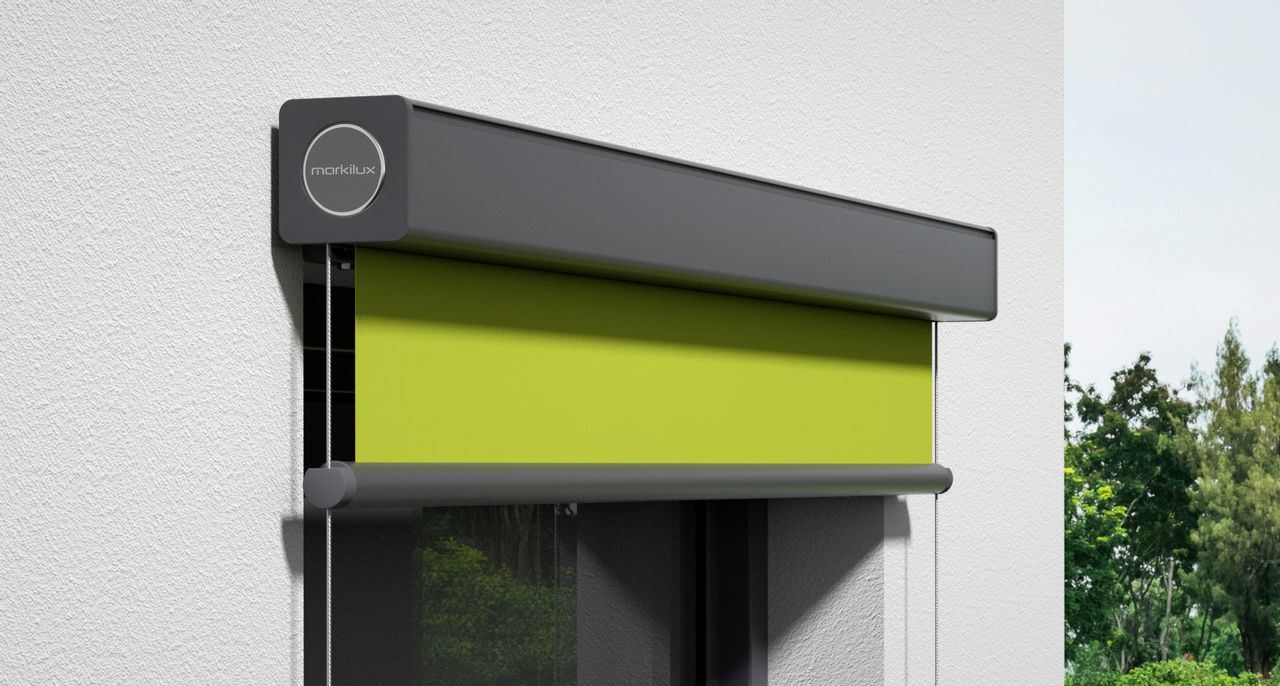

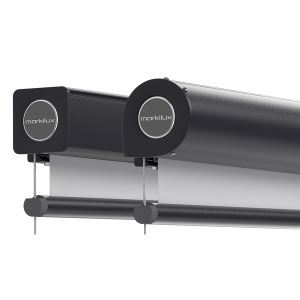

Discreet cassette look

The fully enclosing cassette protects the awning cover all around.

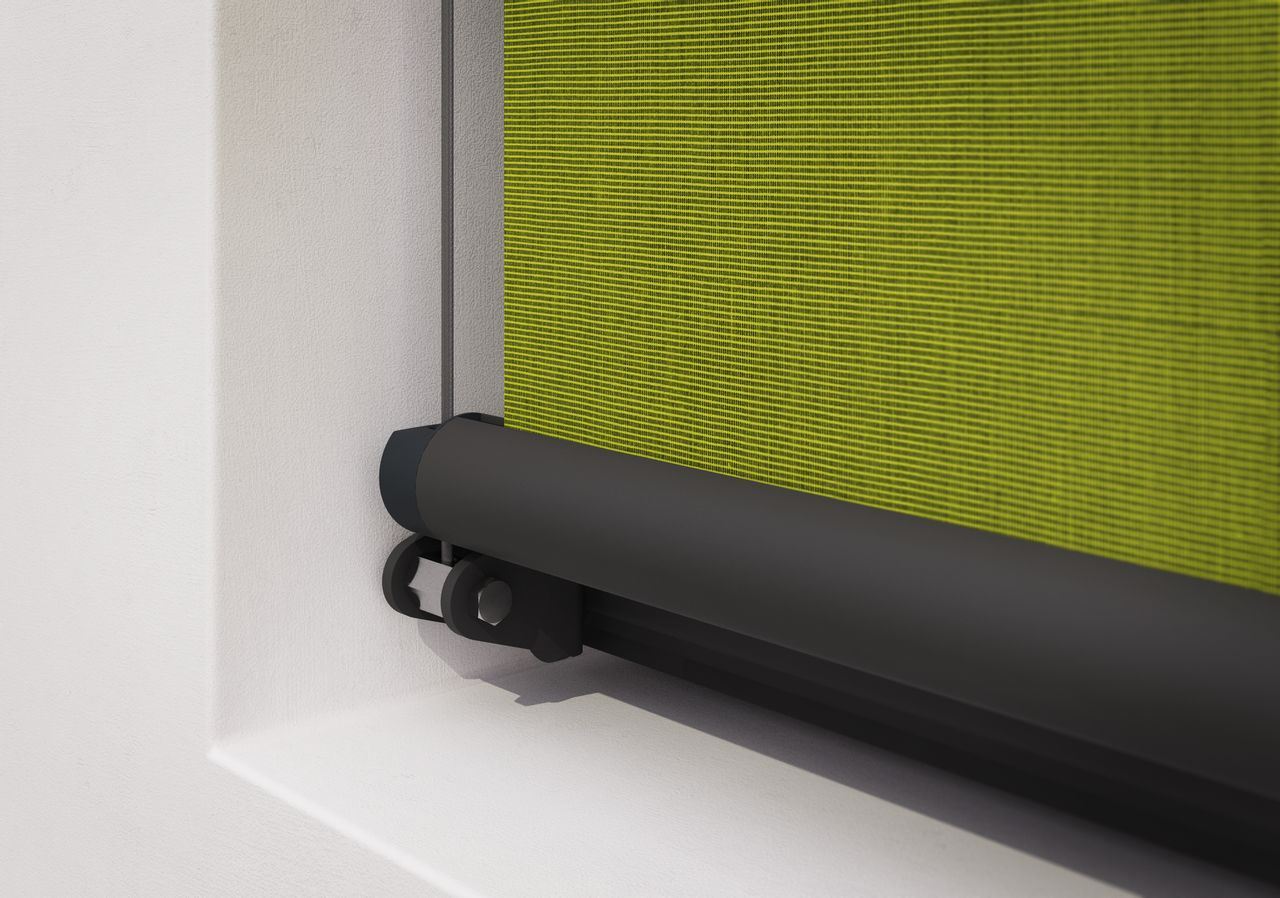

Cloth guide with stainless steel cables

Plastic-coated, barely visible, for filigree appearance.

markilux remote control

Feeling good can be so easy. Awning, shadeplus, light and heat (depending on model) at the touch of a button.

Weather dependent control

Sun, wind and rain sensors ensure automatic retraction and extension of the awning according to the current weather conditions.

Technical information markilux 710
Awning typeVertical cassette awning
Maximum width x extension500 x 350 cm
Area to be shaded 17.5 sqm
Cassette depth x height95 x 95 mm
Operation

•Manual operation
•Motor
•radio-controlled motor

Cloth guideStainless steel cable
Cover tensionergravity
available fabric covers

•visutex
•suncolours
•specials
•smart art
•transolair
•perfotex
•perla FR

Fixture type

Wall / Ceiling / Niche

Wind resistance class - corresponds to wind strength

2 - 5 → 28 - 37 km/h

Frame colours

•Traffic white RAL 9016
•White aluminium RAL 9006
•Grey-brown similar to RAL 8019
•Off-white textured finish 5233
•Stone grey metallic 5215
•Anthracite metallic 5204
•Havana brown textured finish 5229
•Special RAL
