Westgate Mfg. -Commercial Outdoor Lighting - WMX - LED Power Adjustable Non-Cutoff Wall Packs

DOWNLOADS

:: ADC12 Aluminum Heat Sink, Outdoor Powder Coating
:: Multi-Power Switch is inside the Fixture
:: Same footprint as traditional HID wall packs
:: Prismatic Borosilicate Glass Lens
:: Input Voltage: 120-277V AC 50/60Hz


Category: site lighting | solid state lighting | wall-mounted lighting...

MasterFormat: Vehicle and Pedestrian Equipment | Loading Dock Equipment | Loading Dock Lights...


View Product Details From Manufacturer


Westgate Mfg.
2462 E. 28th Street
Vernon, CA 90058
Tel: (877) 805-2252
Fax: (877) 809-2252

customerservice@westgatemfg.com

https://www.westgatemfg.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

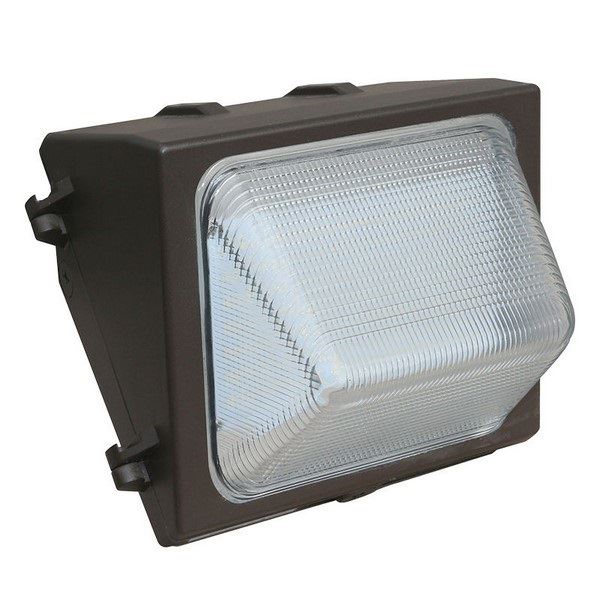

Commercial Outdoor Lighting - WMX - LED Power Adjustable Non-Cutoff Wall Packs

Technical Specs

:: ADC12 Aluminum Heat Sink, Outdoor Powder Coating
:: Multi-Power Switch is inside the Fixture
:: Same footprint as traditional HID wall packs
:: Prismatic Borosilicate Glass Lens
:: Input Voltage: 120-277V AC 50/60Hz
:: Four 1/2” Hubs: 1 top. 1 on Each Side, 1 Rear
:: CRI: >70
:: Power factor: >0.9
:: Operating Temperature: -40°F ~ 104°F
:: 70,000 hour rated life
:: 7-year warranty
:: IP rating: IP65, Wet Locations

Applications

:: Ideal for general site lighting, alleys, loading docks, doorway, pathway and parking areas.
:: Replace existing HID wall packs
:: Great for use with photocell


See More


Specifications

Product NameColor TempWattsDimensionsLumens/Watts
WMX-SM-15-30W-30K3000K15W/20W/25W/30W10 1/4"(W) x 9 1/2"(H) x 9"(D)130LM/W
WMX-SM-15-30W-40K4000K15W/20W/25W/30W10 1/4"(W) x 9 1/2"(H) x 9"(D)130LM/W
WMX-SM-15-30W-50K5000K15W/20W/25W/30W10 1/4"(W) x 9 1/2"(H) x 9"(D)130LM/W
WMX-MD-20-50W-30K3000K20W/30W/40W/50W15 1/4"(W) x 9 1/2"(H) x 7 1/2"(D)130LM/W
WMX-MD-20-50W-40K4000K20W/30W/40W/50W15 1/4"(W) x 9 1/2"(H) x 7 1/2"(D)130LM/W
WMX-MD-20-50W-50K5000K20W/30W/40W/50W15 1/4"(W) x 9 1/2"(H) x 7 1/2"(D)130LM/W
WMX-MD-20-80W-30K3000K20W/40W/60W/80W15 1/4"(W) x 9 1/2"(H) x 7 1/2"(D)130LM/W
WMX-MD-20-80W-40K4000K20W/40W/60W/80W15 1/4"(W) x 9 1/2"(H) x 7 1/2"(D)130LM/W
WMX-MD-20-80W-50K5000K20W/40W/60W/80W15 1/4"(W) x 9 1/2"(H) x 7 1/2"(D)130LM/W
WMX-LG-50-120W-30K3000K50W/80W/100W/120W18 1/3"(W) x 9 2/5"(H) x 9"(D)130LM/W
WMX-LG-50-120W-40K4000K50W/80W/100W/120W18 1/3"(W) x 9 2/5"(H) x 9"(D)130LM/W
WMX-LG-50-120W-50K5000K50W/80W/100W/120W18 1/3"(W) x 9 2/5"(H) x 9"(D)130LM/W
