Westgate Mfg. -Outdoor Lighting - LMW - LED Mini Cutoff Wall Packs

DOWNLOADS
  • Die-Cast Aluminium with Powder Coat Finish
  • High Transparent Tempered Glass
  • Lumens: 1300LM
  • Wattage: 12W
  • Voltage: 120-277VAC 80Hz
  • Chip: Philips Lumileds Lexeon 3030 High Flux LED
  • Efficacy: 125/130/135 LPW

Category: site lighting | solid state lighting | solid-state lighting...

MasterFormat: Vehicle and Pedestrian Equipment | Loading Dock Equipment | Loading Dock Lights...



Westgate Mfg.
2462 E. 28th Street
Vernon, CA 90058
Tel: (877) 805-2252
Fax: (877) 809-2252

customerservice@westgatemfg.com

https://www.westgatemfg.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview


Outdoor Lighting - LMW - LED Mini Cutoff Wall Packs

Technical Specs

  • Die-Cast Aluminium with Powder Coat Finish
  • High Transparent Tempered Glass
  • Lumens: 1300LM
  • Wattage: 12W
  • Voltage: 120-277VAC 80Hz
  • Chip: Philips Lumileds Lexeon 3030 High Flux LED
  • Efficacy: 125/130/135 LPW
  • Color Rendering Index: CRI ≥ 80
  • Beam Angle: 100° x 100°
  • Power Factor: >0.9
  • Operating Temp: -40°F to 104°F
  • Lifespan: 70,000 hours
  • IP Rating: IP54, Wet Locations

Application

  • Ideal for general site lighting, alleys, loading docks, pathways, parking areas, residential areas, balcony, terrace and small .


See More


Specifications

Variations
Product NameLumensColor TempWattsDimensionsFactory-Install Options
LMW-12W-30K1300LM3000K12W5-1/8"H x 5"W x 2-3/4"L

OPT-PC-B

LMW-12W-40K1300LM4000K12W5-1/8"H x 5"W x 2-3/4"L

OPT-PC-B

LMW-12W-50K1300LM5000K12W5-1/8"H x 5"W x 2-3/4"L

OPT-PC-B

LMW-12W-30K-WH1300LM3000K12W5-1/8"H x 5"W x 2-3/4"L

OPT-PC-B

LMW-12W-40K-WH1300LM4000K12W5-1/8"H x 5"W x 2-3/4"L

OPT-PC-B

LMW-12W-50K-WH1300LM5000K12W5-1/8"H x 5"W x 2-3/4"L

OPT-PC-B

Accessories
Product NameDimensionsDescription

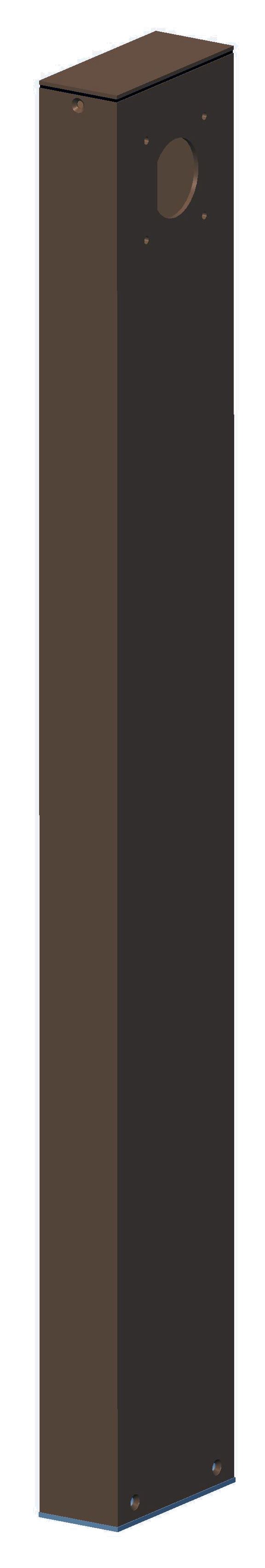

WMS-POST1-1818"(H) x 5""(L) x 2.3""(W)"18" One side post for WMS series"
WMS-POST2-1818"(H) x 5""(L) x 2.3""(W)"18" Two side post for WMS series"
WMS-POST1-3636"(H) x 5""(L) x 2.3""(W)"36" One side post for WMS series"
WMS-POST2-3636"(H) x 5""(L) x 2.3""(W)"36" Two side post for WMS series"
