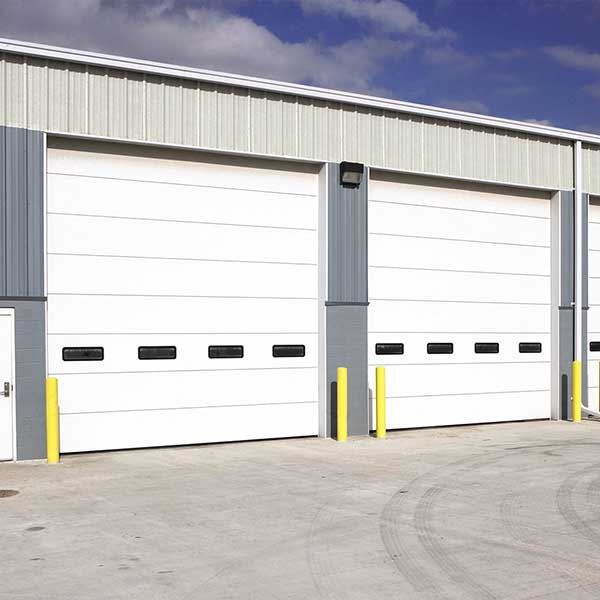

Model 216 Sectional Steel Doors

Wayne Dalton’s Model 216 is a tough commercial sectional door built to withstand severe weather and harsh conditions while also providing your building with added safety and security. Whether subjected to severe weather, rough use or security hazards, Model 216 is engineered to perform and stand the test of time.

Model 216’s sections are made of industrial-grade, 16-gauge hot-dipped galvanized steel with heavy-duty vertical stiles for quick and secure hinge installation. For even more strength, we’ve reinforced the bottom section of this door with a flexible bulb shaped vinyl astragal held in place by a continuous roll-formed steel retainer. Optional insulation consists of 1-9/16" expanded polystyrene which provides an R-value* of up to 7.64 and a U-value as low as 0.13.

*Wayne Dalton uses a calculated door section R-value for insulated doors.

Features

• Max Width: 28’2”
• Max Height: 18’1”
• 16-gauge exterior steel
• Optional polystyrene insulation, R-value* = 7.64
• 10,000 cycle standard spring
• Shiplap joint profile

Door Options

• Chain hoist operation
• Motor operation
• High cycle springs (25k, 50k, 100k)
• 3” track
• Solid shafts
• Perimeter weather seal
• Broken cable devices
• Sensing edges
• Photo eyes
• Special track designs
• Mullions

Wayne Dalton’s optional Impact Section replaces the traditional bottom section on doors exposed to damage from forklifts and other warehouse traffic.

• Reduces downtime and costly repairs
• Impact-Resistant composite skins surround an expanded polystyrene core
• Fully adaptable to multiple door thicknesses with hinge and section adapters to provide a superior fit
• Available for 21" and 24" sections
• Available from 8’2” to 16’2” wide in one-foot increments
