SienaStone Retaining Wall

Make a solid statement by anchoring your design with SienaStone.

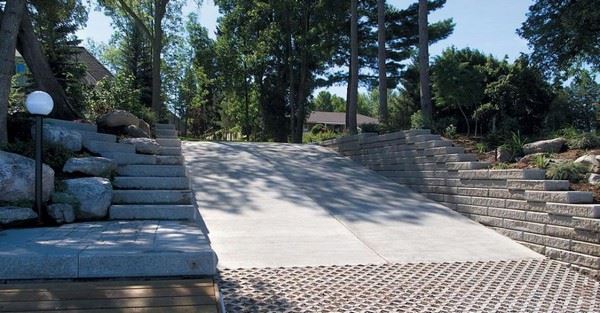

Bold and dramatic, SienaStone (over 450 lbs ea.) strikes an impressive profile when used for a wall or as treads in large outdoor staircases. An attractive solution for most heavy-duty load-bearing applications.

Features

Custom Colors

May be available for this product. Minimum quantities will apply.

Applications

Engineered Retaining Wall

Retaining Wall

Steps

Special Order

Minimum quantities apply

Surface Texture

Standard

TECHNICAL INFORMATION

ASTM C 1372 Standard Specifications for Dry-Cast Segmental Retaining Wall Units

Conforms to:

  • C140 for Absorption and Compressive Strength > 3000 PSI
  • C1262 for Freeze Thaw Durability <1% mass loss
  • C1372 Overall dimensional variations permissable for width, height and length ± 1/8” (±3.2mm)

Unilock standards exceed 5,000 PSI for SienaStone® products with:

  • 4% absorption avg.
  • 5% absorption max.
  • Dimensional Accuracy +/- 5/64” (±2.00mm)

LEED INFORMATION

Materials & Resources: LEED V4:

Building Product Disclosure and Optimization

Sourcing of Raw Materials - Sourcing of Raw Materials and Extraction • 1 point

Sourcing of Raw Materials - Leadership Extraction Practices • 1 point

Material Ingredient Reporting - Material Ingredient Reporting • 1 point

Material Ingredient Reporting - Material Ingredient Optimization • 1 point

Environmental Product Declaration • 1 point

Note: Product offerings and availability may vary by region. Connect with your local Unilock representative for more information.


See More


Specifications

Packaging
Face Feet PerFace Feet PerLinear Feet PerLinear Feet PerUnits PerUnits PerLbs PerLbs Per
Stones & BundlingBundleUnitBundleUnitBundleFace FeetUnitBundle
Standard 33321.632.436490.423803420
Standard 50014.422.424460.425703420
Standard 9257.212.412430.4211403420
Coping 48"14.422.424460.425703420
Coping Closed End 48"14.422.424460.425703420
Corner 90° (dbl unit)19.116.3730.1611403420
Corner 45° (dbl unit)19.116.3730.1610503150
