Overview

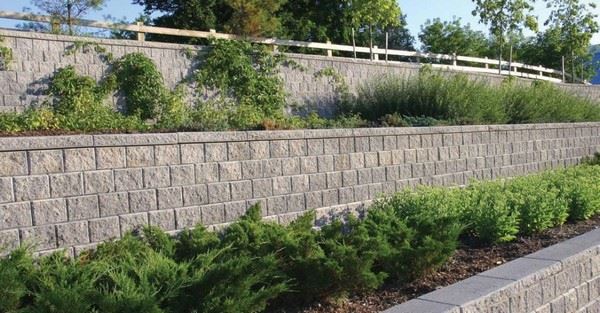

Pisa Retaining Wall

Tame a steep slope and create a beautiful focal point with Pisa.

The built-in setback design of Pisa automatically forms the correct slope, ensuring a highly stable retaining wall. Utilizing the product’s tapered components, you can form curved walls and steps.

Features

Custom Colors

May be available for this product. Minimum quantities will apply.

Applications

Engineered Retaining Wall

Garden Wall

Seat Wall

Steps

Surface Texture

Split

TECHNICAL INFORMATION

ASTM C 1372 Standard Specifications for Dry-Cast Segmental Retaining Wall Units

Conforms to:

  • C140 for Absorption and Compressive Strength > 3000 PSI
  • C1262 for Freeze Thaw Durability <1% mass loss
  • C1372 Overall dimensional variations permissable for width, height and length ± 1/8” (±3.2mm)

Unilock standards exceed 5,000 PSI for Pisa® products with:

  • 4% absorption avg.
  • 5% absorption max.
  • Dimensional Accuracy +/- 5/64” (±2.00mm)

LEED INFORMATION

Materials & Resources: LEED V4:

Building Product Disclosure and Optimization

Sourcing of Raw Materials - Sourcing of Raw Materials and Extraction • 1 point

Sourcing of Raw Materials - Leadership Extraction Practices • 1 point

Material Ingredient Reporting - Material Ingredient Reporting • 1 point

Material Ingredient Reporting - Material Ingredient Optimization • 1 point

Environmental Product Declaration • 1 point

Note: Product offerings and availability may vary by region. Connect with your local Unilock representative for more information.


See More


Specifications

Packaging
Face Feet PerFace Feet PerLinear Feet PerLinear Feet PerUnits PerUnits PerPer BundlePer BundleLbs PerLbs Per
Stones & BundlingBundleUnitBundleUnitBundleFace FeetLayersSectionsUnitBundle
Standard240.33347.90.6657234483456
Tapered200.667401.3333022775
Corner Unit201.667120.62961152
Coping 24" - Double Unit (does not include closed end units)16164416121452320
U-Grip Base Pad85.391.581549462500
