Overview


Hex / City Park Paver™

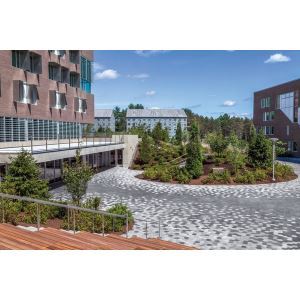

This contemporary hex shape provides designers with a unique range of patterning options that are impossible to deliver with traditional four-sided pavers. Choose a single color for a homogeneous look or use a mix to create unique, one-of-a-kind patterns. This shape is also available as part of the Granito and Umbriano product line.

Features

Applications

Commercial Vehicular

Pedestrian

Residential Vehicular

Technologies

ColorFusion Technology Available

EasyClean Stain Resistance May Be Available*

An integral surface protection that allows for easier cleanup of spills when they happen, and before a stain can develop.

*Please contact your local representative for regional availability.

Custom Colors

May be available for this product. Minimum quantities will apply.

Surface Texture

Customizable

EnduraColor Facemix Technology

EnduraColor products are manufactured in a two-step process which combines a base of coarser aggregates for a stronger foundation, with concentrated color and wear-resistant finer aggregates on top. EnduraColor products are highly resistant to fading because the top layer prevents large, lighter color aggregates from showing through.

TECHNICAL INFORMATION

ASTM C 936 Standard Specifications for Solid Concrete Interlocking Paving Units

Conforms to:

  • C140 for Absorption and Compressive Strength > 8,000 PSI
  • C67 for Freeze-thaw Durability
  • C418 for Abrasion Durability

Unilock standards exceed 8,500 PSI for Artline™ products with:

  • 4% absorption avg.
  • 5% absorption max.
  • Dimensional Accuracy +/- 3/64”

Meets the U.S. Architectural & Transportation Barrier Compliance Board Slip-Resistance Surfaces Advisory Guidelines

LEED INFORMATION

Materials & Resources: LEED V4

Building Product Disclosure and Optimization

Sourcing of Raw Materials - Sourcing of Raw Materials and Extraction • 1 point

Sourcing of Raw Materials - Leadership Extraction Practices • 1 point

Material Ingredient Reporting - Material Ingredient Reporting • 1 point

Material Ingredient Reporting - Material Ingredient Optimization • 1 point

Environmental Product Declaration • 1 point

Note: Product offerings and availability may vary by region. Connect with your local Unilock representative for more information.
