Overview

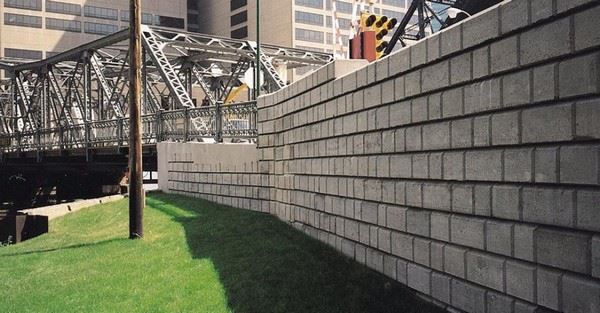

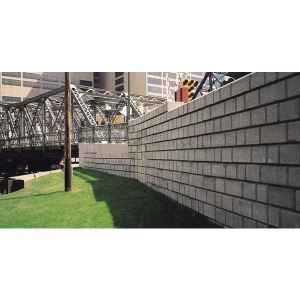

DuraHold Retaining Wall

DuraHold, a massive wall unit for massive walls.

The large size of Dura-Hold makes it an excellent choice for demanding structures up to 40ft (12.19m). Proper engineering and a good selection of components make this an exceptional wall system. It’s a great alternative to “poured” in place concrete.

Features

Custom Colors

May be available for this product. Minimum quantities will apply.

Applications

Engineered Retaining Wall

Retaining Wall

Special Order

Minimum quantities apply

Surface Texture

Standard

TECHNICAL INFORMATION

ASTM C 1372 Standard Specifications for Dry-Cast Segmental Retaining Wall Units

Conforms to:

  • C140 for Absorption and Compressive Strength > 3000 PSI
  • C1262 for Freeze Thaw Durability <1% mass loss
  • C1372 Overall dimensional variations permissable for width, height and length ± 1/8” (±3.2mm)

Unilock standards exceed 6,000 PSI for Durahold® products with:

  • 4% absorption avg.
  • 5% absorption max.
  • Dimensional Accuracy +/- 5/64” (±2.00mm)

Meets the U.S. Architectural & Transportation Barrier Compliance Board Slip-Resistance Surfaces Advisory Guidelines*

LEED INFORMATION

Materials & Resources: LEED V4:

Building Product Disclosure and Optimization

Sourcing of Raw Materials - Sourcing of Raw Materials and Extraction • 1 point

Sourcing of Raw Materials - Leadership Extraction Practices • 1 point

Material Ingredient Reporting - Material Ingredient Reporting • 1 point

Material Ingredient Reporting - Material Ingredient Optimization • 1 point

Environmental Product Declaration • 1 point

Note: Product offerings and availability may vary by region. Connect with your local Unilock representative for more information.


See More


Specifications

Packaging
Face Feet PerLinear Feet PerUnits PerUnits PerLbs Per
Stones & BundlingUnitBundleBundleFace FeetBundle
Standard6.0246.0210.171680
Coping 726.0246.0210.171560
Coping Closed End 726.0246.0210.171560
Wall Tieback2210.51660
1/2 Standard3.003310.33800
1/2 Coping3.003310.33780
Corner 90°7.04210.141320
Corner 45°7.04210.141480
