Overview

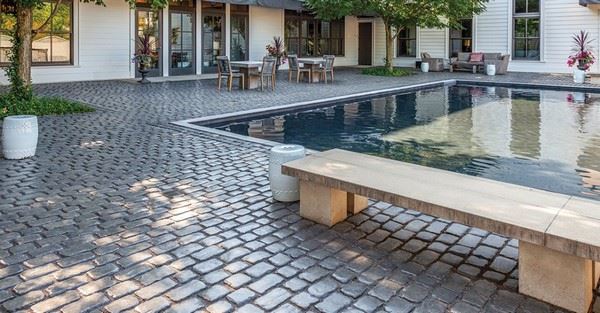

Courtstone Pavers

Old World Elegance

Courtstone brings a luxurious, old-world elegance to the public realm, with Ultima™ providing up to four times the strength of conventional poured concrete. Using Reala™ Technology, the unique shapes of Courtstone were cast from real European cobblestones, but manufactured with a consistent base for efficient installation and superior interlock. This, in combination with its rich color palette, makes Courtstone a frequent choice for vehicular paving, borders and banding accents.

Features

Applications

Borders & Accents

Pedestrian

Residential Vehicular

Surface Texture

Cobblestone

Stone Finish

Custom Colors

May be available for this product. Minimum quantities will apply.

Technologies

Elegance

Deep, rich colors and a multitude of unique Reala™ textures combine to deliver the timeless beauty of Unilock Elegance. From the timeworn look of European cobblestones, to the classic luxury of riven natural stone slabs, our Elegance collection offers styles you can’t get anywhere else, and thanks to Ultima Concrete, the look you purchase is the look that will last, with up to 4x the strength of poured in place concrete.

Reala Surface Technology

Ultra-realistic textures cast from actual natural stone, brick and cobblestones.

Ultima Concrete Technology

For heavy traffic loads, this proprietary manufacturing process creates pavers and walls with up to 4 times the strength of poured concrete.

EnduraColor Facemix Technology

EnduraColor products are manufactured in a two-step process which combines a base of coarser aggregates for a stronger foundation, with concentrated color and wear-resistant finer aggregates on top. EnduraColor products are highly resistant to fading because the top layer prevents large, lighter color aggregates from showing through.

TECHNICAL INFORMATION

ASTM C 936 Standard Specifications for Solid Concrete Interlocking Paving Units

Conforms to:

  • C140 for Absorption and Compressive Strength > 8,000 PSI
  • C67 for Freeze-thaw Durability
  • C418 for Abrasion Durability

Unilock standards exceed 10,000 PSI for Courtstone® products with:

  • 4% absorption avg.
  • 5% absorption max.
  • Dimensional Accuracy +/- 3/64″

Meets the U.S. Architectural & Transportation Barrier Compliance Board Slip-Resistance Surfaces Advisory Guidelines

LEED INFORMATION

Materials & Resources: LEED V4:

Building Product Disclosure and Optimization

Sourcing of Raw Materials - Sourcing of Raw Materials and Extraction • 1 point

Sourcing of Raw Materials - Leadership Extraction Practices • 1 point

Material Ingredient Reporting - Material Ingredient Reporting • 1 point

Material Ingredient Reporting - Material Ingredient Optimization • 1 point

Environmental Product Declaration • 1 point

Note: Product offerings and availability may vary by region. Connect with your local Unilock representative for more information.


See More


Specifications

Packaging
UnitSqFt PerSqFt PerSqFt PerPer BundleSoldier LnFt PerSoldier LnFt PerSailor LnFt PerSailor LnFt PerUnits PerUnits PerLbs PerLbs Per
Stones & BundlingThicknessBundleLayerStoneLayersSqFtBundleSqFtBundleSqFtBundleLayersBundle
Random Bundle98.312.2980.6163.80.444221.53.913842912326
XL Rectangle2-3/8" (6cm)38.510.30.70554.60.4390.293.32128
Large Rectangle2-3/8" (6cm)16.570.260.60727.30.4338.853.8664
Rectangle2-3/8" (6cm)14.780.230.54127.30.4334.654.3364
Small Rectangle2-3/8" (6cm)12.990.20.47627.30.4330.454.9364
Square2-3/8" (6cm)11.640.180.42727.30.4327.35.564
