Overview


Bristol Valley Pavers

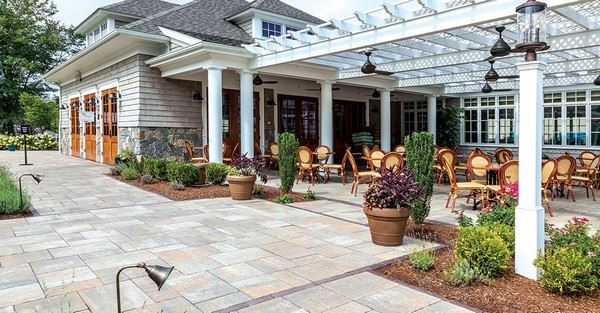

The subtle surface texture and an understated edge detail of Bristol Valley brings a new, refined elegance to projects. With the refined surface and artfully blended long-lasting colors of Enduracolor, Bristol Valley is an excellent choice for walkways, plazas and pedestrian applications.

Features

Applications

Pedestrian

Residential Vehicular

Roof Deck

Custom Colors

May be available for this product. Minimum quantities will apply.

Technologies

EasyClean Stain Resistance May Be Available*

An integral surface protection that allows for easier cleanup of spills when they happen, and before a stain can develop.

*Please contact your local representative for regional availability.

EnduraColor Facemix Technology

EnduraColor products are manufactured in a two-step process which combines a base of coarser aggregates for a stronger foundation, with concentrated color and wear-resistant finer aggregates on top. EnduraColor products are highly resistant to fading because the top layer prevents large, lighter color aggregates from showing through.

Surface Texture

Flagstone

TECHNICAL INFORMATION

ASTM C936 Standard Specifications for Solid Concrete Interlocking Paving Units

Conforms to:

  • C140 for Absorption and 8,500 PSI > Compressive Strength
  • C67 for Freeze-thaw Durability
  • C418 for Abrasion Durability

Unilock standards exceed 8,500 PSI for Bristol Valley™ products with:

  • 4% absorption avg.
  • 5% absorption max.
  • Dimensional Accuracy +/- 3/64”

Meets the U.S. Architectural & Transportation Barrier Compliance Board Slip-Resistance Surfaces Advisory Guidelines

LEED INFORMATION

Materials & Resources: LEED V4:

Building Product Disclosure and Optimization

Sourcing of Raw Materials - Sourcing of Raw Materials and Extraction • 1 point

Sourcing of Raw Materials - Leadership Extraction Practices • 1 point

Material Ingredient Reporting - Material Ingredient Reporting • 1 point

Material Ingredient Reporting - Material Ingredient Optimization • 1 point

Environmental Product Declaration • 1 point

Note: Product offerings and availability may vary by region. Connect with your local Unilock representative for more information.


See More


Specifications

Packaging
UnitSqFt PerSqFt PerSqFt PerPer BundleUnits PerUnits PerLbs PerLbs Per
Stones & BundlingThicknessBundleLayerStoneLayersSqFtBundleLayersBundle
Random Bundle 6cm2-3/8" (6cm)94.1410.461.3490.77722852569
Large Rectangle2-3/8" (6cm)2.090.4818
Small Rectangle2-3/8" (6cm)0.71.4327
Square2-3/8" (6cm)1.40.7227
