Overview


Artline Pavers

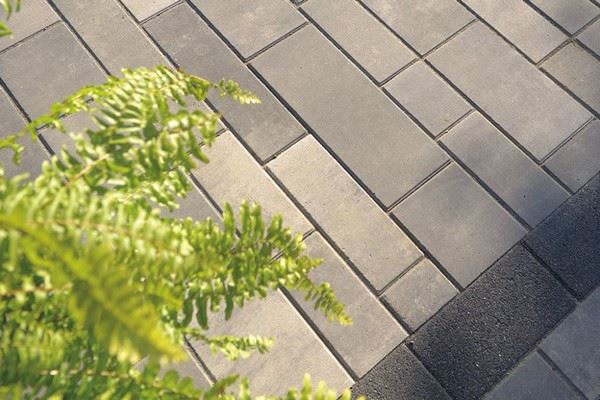

The long, clean lines of Artline create modern, linear outdoor designs. The product is sold in a random bundle of seven different rectangular shapes, of varying lengths and two widths. These units are typically laid in a running bond pattern which creates a long, linear look. There are a variety of Artline color and texture options to choose from using EnduraColor technology for a refined surface with long lasting color and some even have EasyClean®, an integral surface protection from stains. These finishes can be used separately for a cohesive look, or combined together to create color and textural interest.

Features

Applications

Pedestrian

Residential Vehicular

Custom Colors

May be available for this product. Minimum quantities will apply.

Surface Texture

Customizable

Technologies

EasyClean Stain Resistance May Be Available*

An integral surface protection that allows for easier cleanup of spills when they happen, and before a stain can develop.

*Please contact your local representative for regional availability.

EnduraColor Facemix Technology

EnduraColor products are manufactured in a two-step process which combines a base of coarser aggregates for a stronger foundation, with concentrated color and wear-resistant finer aggregates on top. EnduraColor products are highly resistant to fading because the top layer prevents large, lighter color aggregates from showing through.

TECHNICAL INFORMATION

ASTM C 936 Standard Specifications for Solid Concrete Interlocking Paving Units

Conforms to:

  • C140 for Absorption and Compressive Strength > 8,000 PSI
  • C67 for Freeze-thaw Durability
  • C418 for Abrasion Durability

Unilock standards exceed 8,500 PSI for Artline™ products with:

  • 4% absorption avg.
  • 5% absorption max.
  • Dimensional Accuracy +/- 3/64”

Meets the U.S. Architectural & Transportation Barrier Compliance Board Slip-Resistance Surfaces Advisory Guidelines

LEED INFORMATION

Materials & Resources: LEED V4

Building Product Disclosure and Optimization

Sourcing of Raw Materials - Sourcing of Raw Materials and Extraction • 1 point

Sourcing of Raw Materials - Leadership Extraction Practices • 1 point

Material Ingredient Reporting - Material Ingredient Reporting • 1 point

Material Ingredient Reporting - Material Ingredient Optimization • 1 point

Environmental Product Declaration • 1 point

Note: Product offerings and availability may vary by region. Connect with your local Unilock representative for more information.


See More


Specifications

Packaging
UnitSqFt PerSqFt PerSqFt PerPer BundleUnits PerUnits PerLbs PerLbs Per
Stones & BundlingThicknessBundleLayerStoneLayersSqFtBundleLayersBundle
Random Bundle93.2511.66182.061923732986
Large 12.52 3/4" (7cm)0.452.232
Large 18.752 3/4" (7cm)0.911.1016
Medium 12.52 3/4" (7cm)0.352.8332
Medium 18.752 3/4" (7cm)0.681.4716
Small 12.52 3/4" (7cm)0.234.432
Small 18.752 3/4" (7cm)0.452.232
X-Large 12.52 3/4" (7cm)0.611.6532
