Unilock -Arcana Pavers

DOWNLOADS

The silky, matte texture and unique speckled color palette of Arcana is created by fine blasting its surface to expose a combination of natural granite, quartz and marble particles. These large format slabs are ideal for pool surrounds, roof decks and overlay projects.


Category: architectural pavers | concrete pavers | plaza pavers...

MasterFormat: Roof Pavers | Bases, Ballasts, and Paving | Unit Paving...



Unilock
Boston, Buffalo, Chicago, Cleveland, Detroit,
Milwaukee, New York
Toronto, ON M9C 5J5
Tel: (800) 864-5625

elaine.willis@unilock.com

https://commercial.unilock.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview


Arcana Pavers

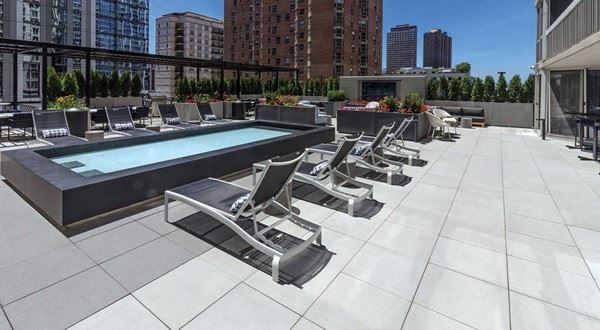

The silky, matte texture and unique speckled color palette of Arcana is created by fine blasting its surface to expose a combination of natural granite, quartz and marble particles. These large format slabs are ideal for pool surrounds, roof decks and overlay projects. Arcana features a non-slip surface and is factory sealed with EasyClean™, an integral surface protection from stains. This is a significant benefit when Arcana is used in outdoor dining areas and high traffic commercial spaces.

Features

Applications

Pedestrian

Roof Deck

Roof Deck Pedestal

Technologies

EasyClean Stain Resistance

An integral surface protection that allows for easier cleanup of spills when they happen, and before a stain can develop

EnduraColor Facemix Technology

EnduraColor products are manufactured in a two-step process which combines a base of coarser aggregates for a stronger foundation, with concentrated color and wear-resistant finer aggregates on top. EnduraColor products are highly resistant to fading because the top layer prevents large, lighter color aggregates from showing through.

Surface Texture

Shot-Blast

Stone Finish

TECHNICAL INFORMATION

ASTM C 1782 Standard Specifications for Utility Segmental Concrete Paving Slabs

Conforms to:

  • Modulus of Rupture - minimum 650 psi
  • C1645 for Freeze-thaw Durability
  • Dimensional Tolerances

Unilock standards exceed dimensional tolerances for:

  • Length and width +/- 2mm
  • Thickness +/-3mm
  • Warpage +/-3mm

Meets the U.S. Architectural & Transportation Barrier Compliance Board Slip-Resistance Surfaces Advisory Guidelines

LEED INFORMATION

Available for LEED credits

Sustainable Sites

  • 5.2 maximize open space
  • 7.2 heat island effect

Energy and Optimization

Materials and Resources


See More


Specifications

Packaging
UnitSqFt PerSqFt PerSoldier LnFt PerSoldier LnFt PerSailor LnFt PerSailor LnFt PerUnits PerLbs Per
Stones & BundlingThicknessBundleStoneSqFtBundleSqFtBundleSqFtBundle
24"x24"1-7/8" (5cm)7241.9935.811.9935.810.251728
