Ecoustic Sculpt® Drop-in Ceiling Tile

Description

ecoustic Sculpt® is an innovative, patented and award winning acoustic drop-in ceiling tile system available in a range of striking designs, from understated simplicity to dramatic sculptural shapes, for new and existing spaces. ecoustic Sculpt® designs are acoustic ceiling tiles created in profiles from Unika Vaev’s ecoustic® SC PET panels that are both acoustic, and fire tested.

ecoustic Sculpt® also provide a simple and quick installation ceiling tile system for use with suspended ceiling grids of both 9/16th (15mm) and 15/16th (24mm) grid sizes, in 4′ x 2′ format. Ceiling Grid type, 9/16” (15mm) or 15/16”(24mm), must be specified at time of order as tiles are custom produced to match the grid type.

Designer

Instyle Studio

Application

Ceiling

Environment

Low VOC, Oeko-Tex® Certified, Rapidly Renewable Content, Prop 65 Compliant, mindful MATERIALS, Greentag Level A Certified, HPD, Declare CDPH Emissions Compliant, No Conflict Materials, Cradle to Cradle Bronze certified

Content

100% PET

NRC Rating

0.65 - 0.75
(with Ecoustic® Infill: 0.90)

Dimensions

Profile Thickness: 0.47" or 0.94" - Tile Dimensions (nominal) 4' x 2' or 2' x 2' - Please see specification page for complete details

Sold In

Please refer to specification pages for complete details

Flammability

AS/ISO 9705 group 1
ASTM E84 Class A
AS/ISO 9705 BCA Group 1
CAN ULC S102

Additional Information

  • Designed and produced in Australia
  • The ecoustic Sculpt® system is supplied flat-packed for efficient transportation and is simple and quick to assemble. The lightweight ceiling tiles are easy to install into suspended ceiling grids, and can be easily removed to gain access to building services
  • Lightweight; Approximately 6.6 lbs (3 kg) or less for the larger, 4’ x 2’ tiles.
  • ecoustic Sculpt® has won four awards:
    Neocon Best New Acoustic Panels and Solutions Gold Award 2018
    Good Design Australia Gold Award 2019
    Architizer A+Awards Finishes - Ceilings Winner 2019
    Interior Design Excellence Award Object Winner 2019
  • Please refer to specification pages for details pertaining to the openness of each profile option.
  • PLEASE NOTE - The 0.94″ Solid Core options are only available for Classic shallow + deep, Network shallow + deep, Steps, and Taper

Performance

  • All ecoustic Sculpt® tiles are supplied standard with sound screen mesh as part of the finished solution. This acoustic fabric enhances the acoustic performance of the tile, and has been specifically designed to compliment the full range of ecoustic® ceiling and wall tile systems.
  • ecoustic Sculpt® tiles can also be supplied with an infill to significantly improve the low-frequency absorption and at the same time replaces the need for further bulky insulation.
  • The Sculpt profiles using 0.94″ Solid Core have a NRC of 0.95. This NRC is intended to be a general guideline only.

Green Star + LEED

  • Please refer to specification page for Green Star + LEED + WELL information


See More


Specifications

Available Colors

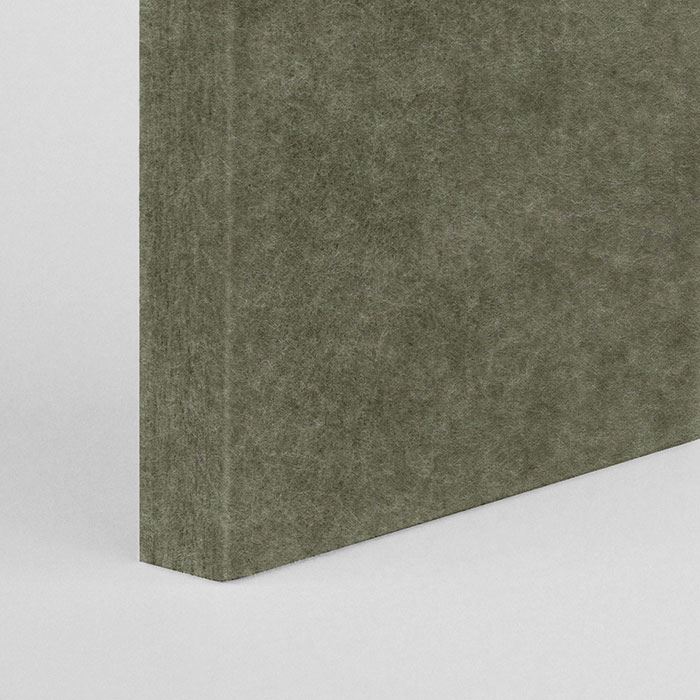

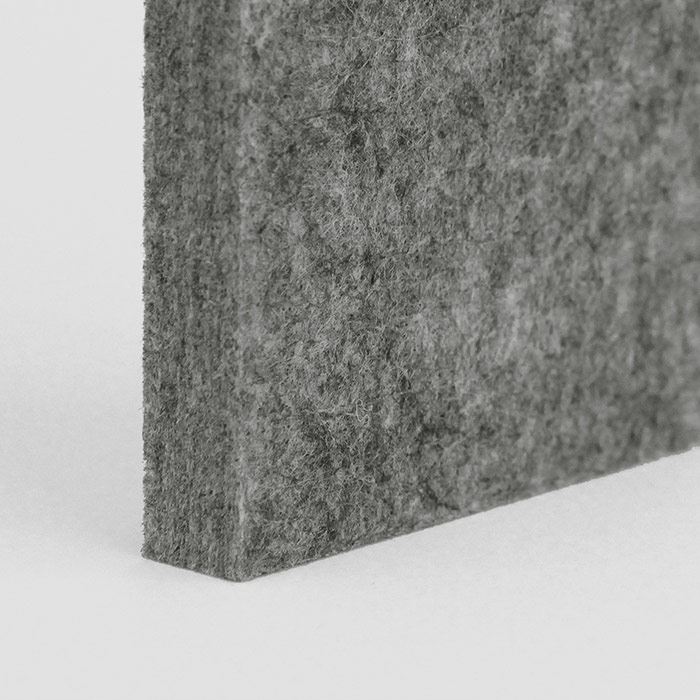

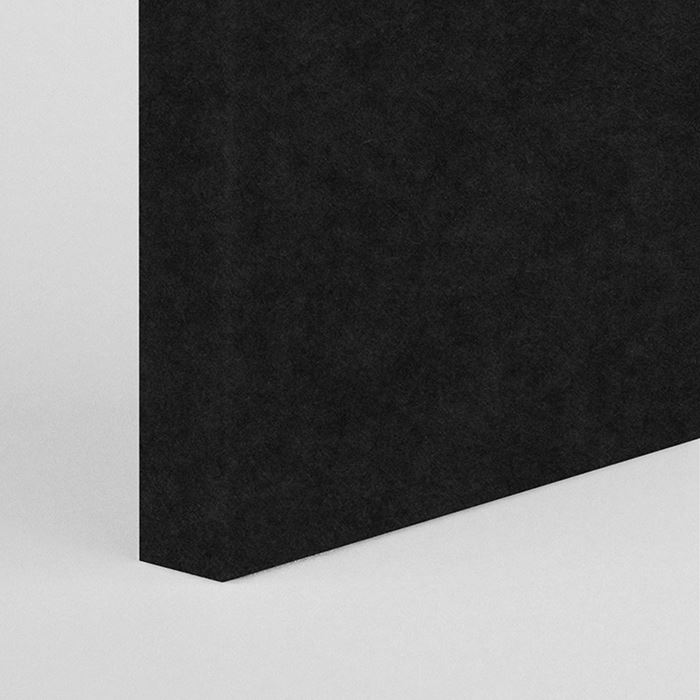

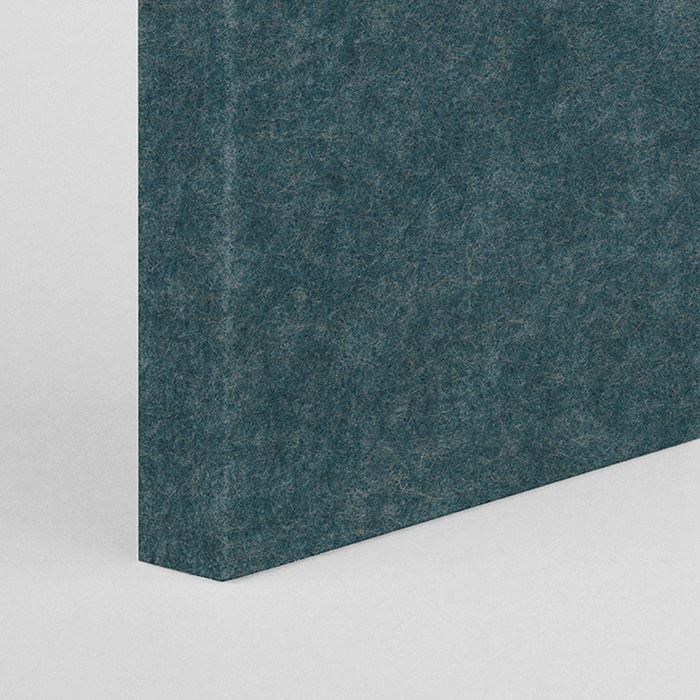

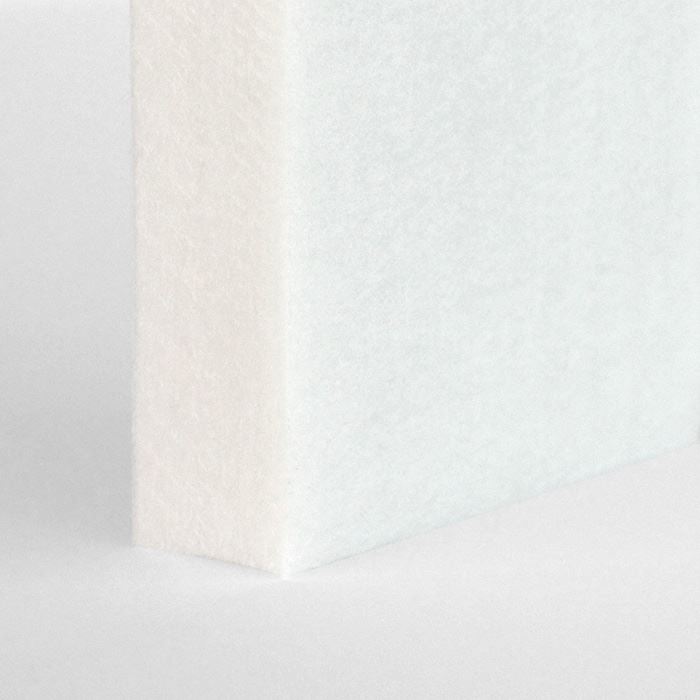

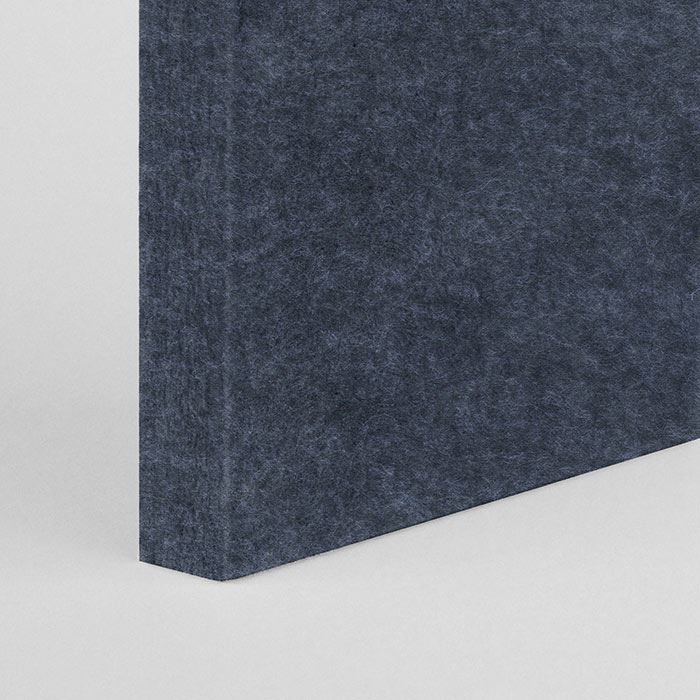

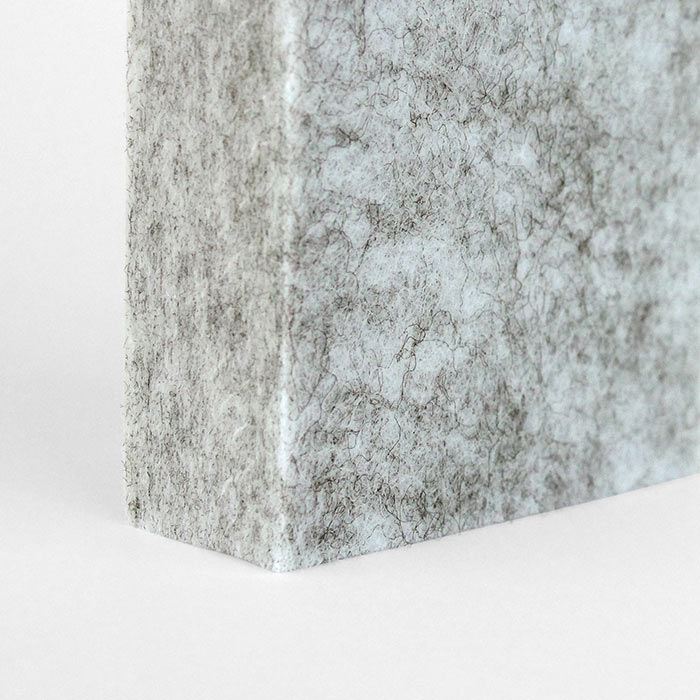

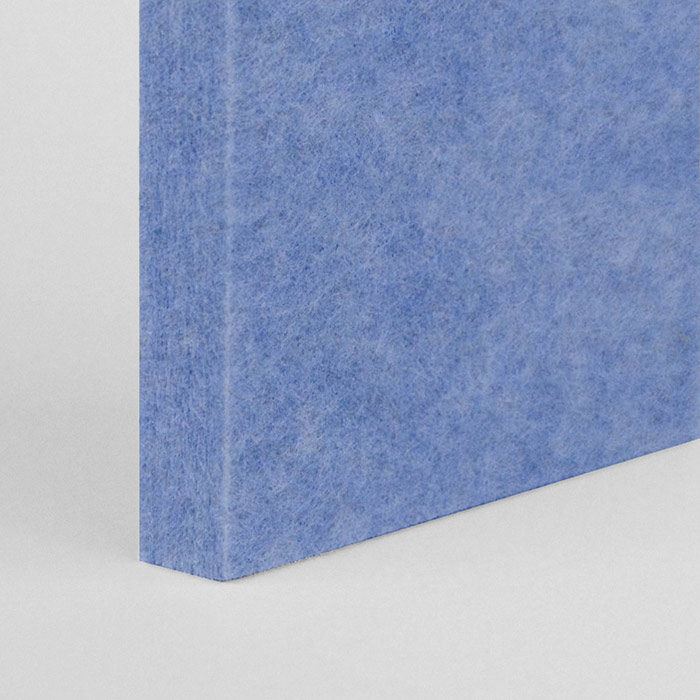

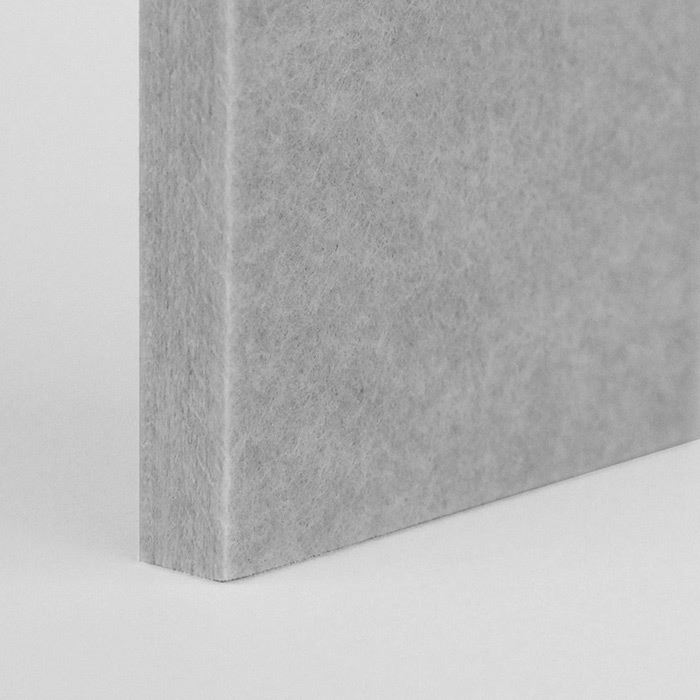

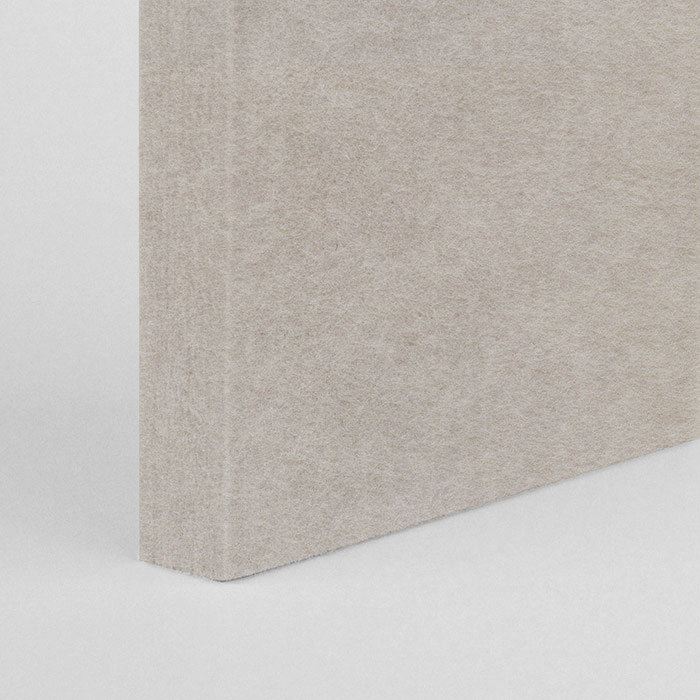

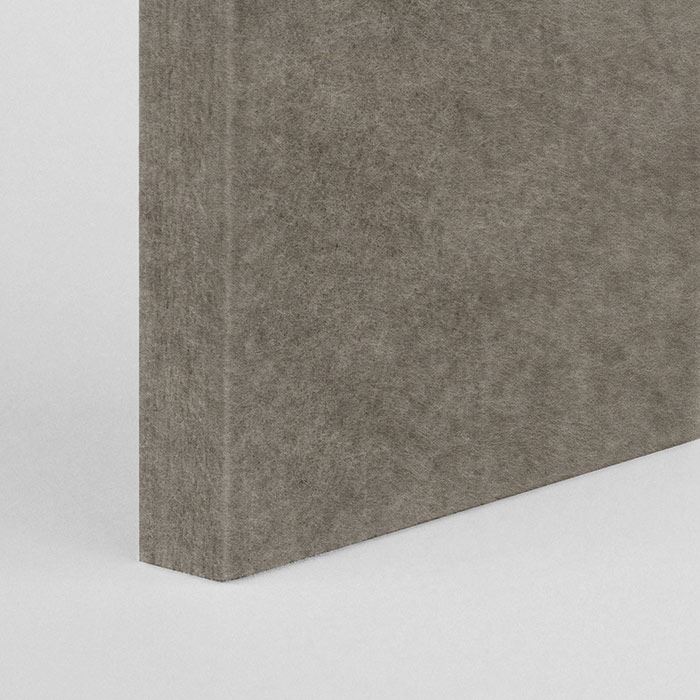

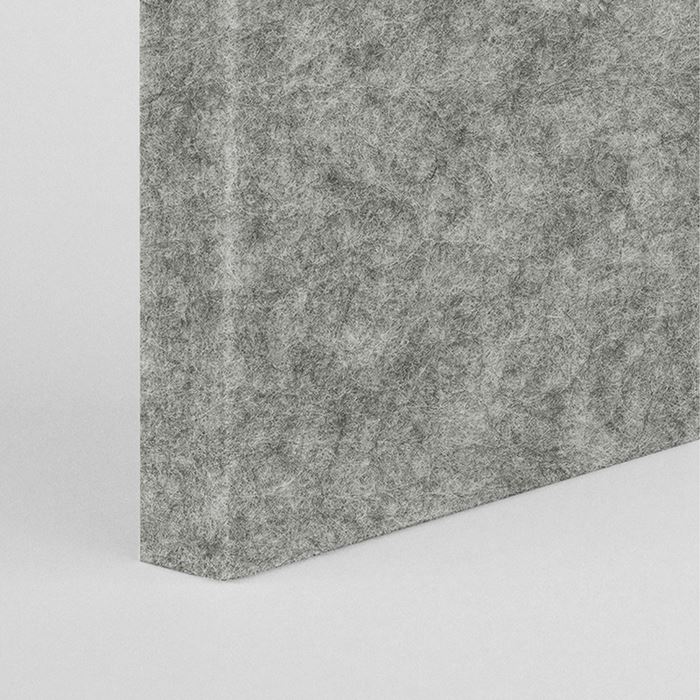

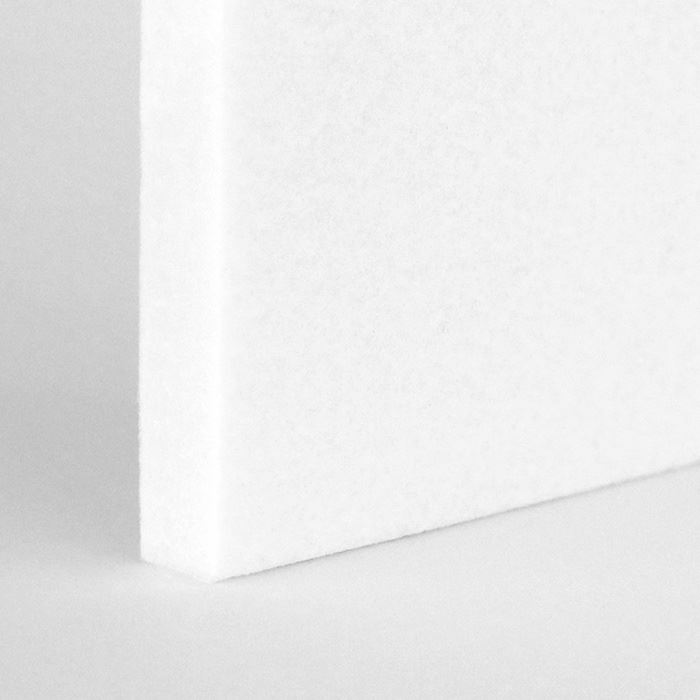

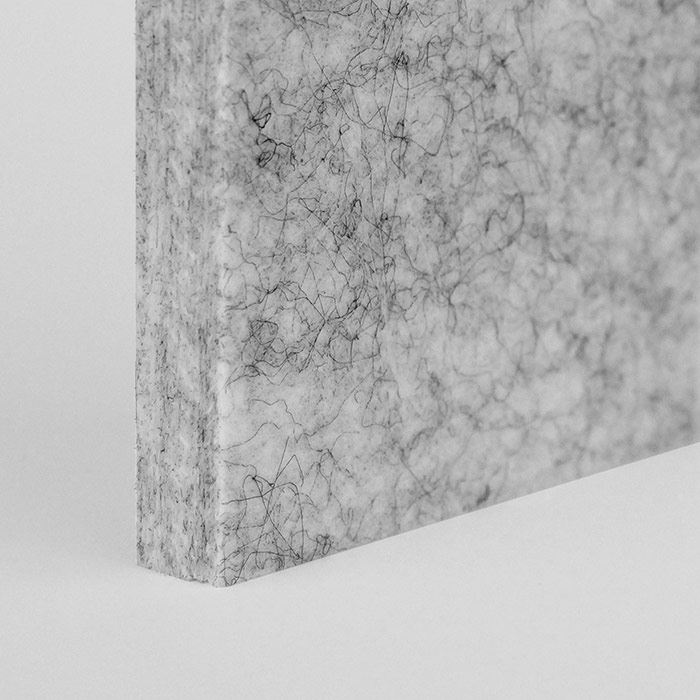

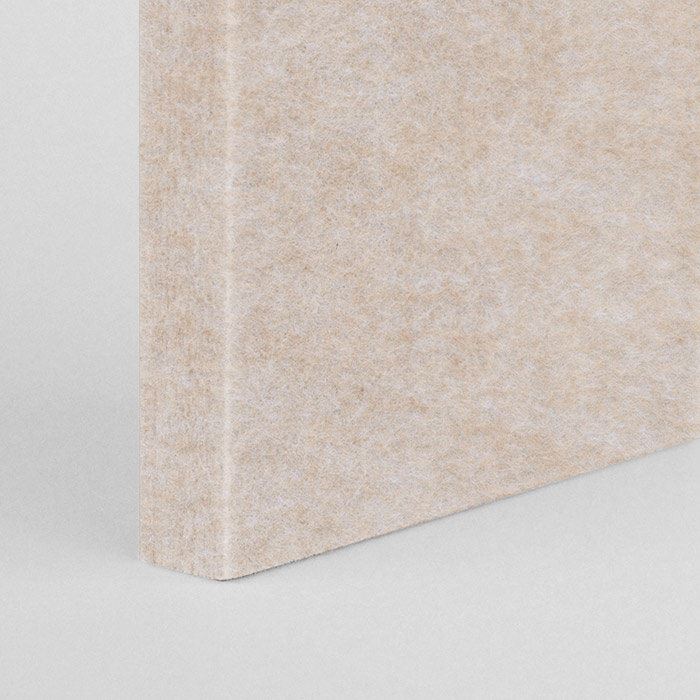

0.47" - Almond0.47" - Atom0.47" - Azure0.47" - Bluebell
0.47" - Cave0.47" - Cirrus0.47" - Cool0.47" - Denim
0.47" - Fawn0.47" - Galaxy0.47" - Horizon0.47" - Iris
0.47" - Isle0.47" - Leaf0.47" - Olive0.47" - Oxide
0.47" - Snowdrop0.47" - Truffle0.47" - Tungsten0.47" - Venus

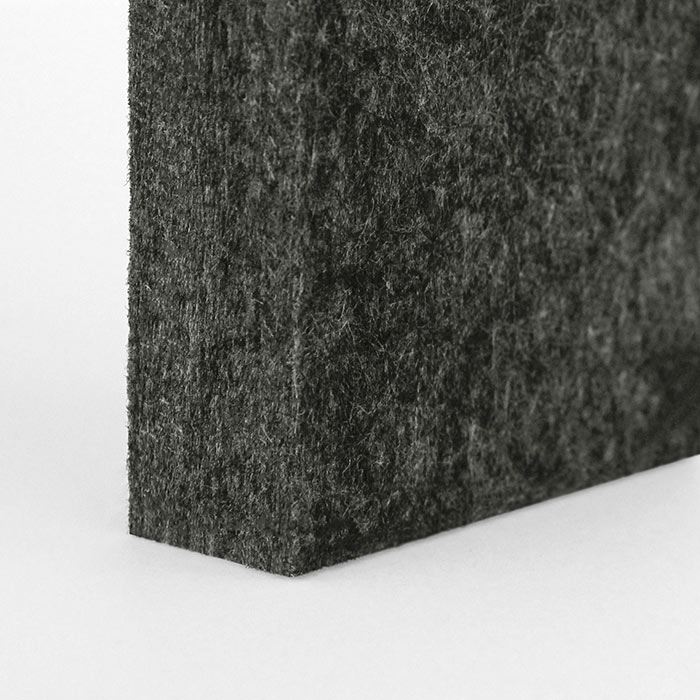

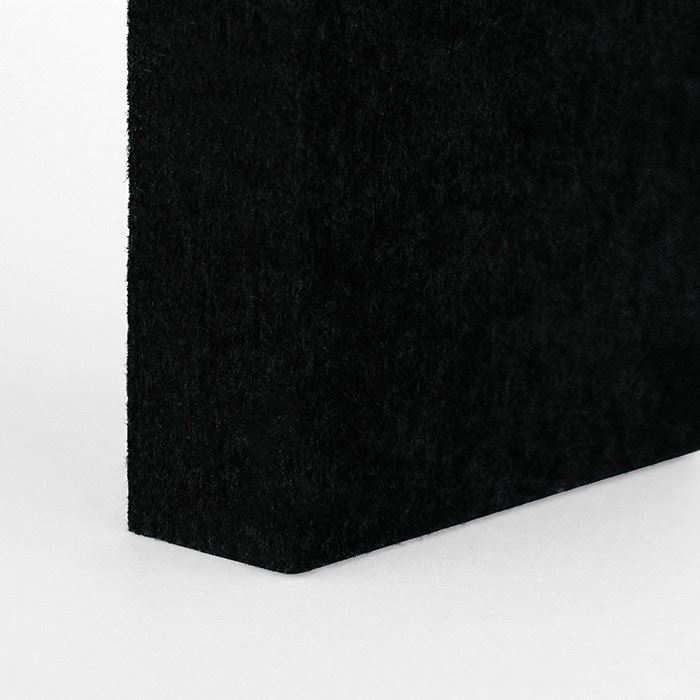

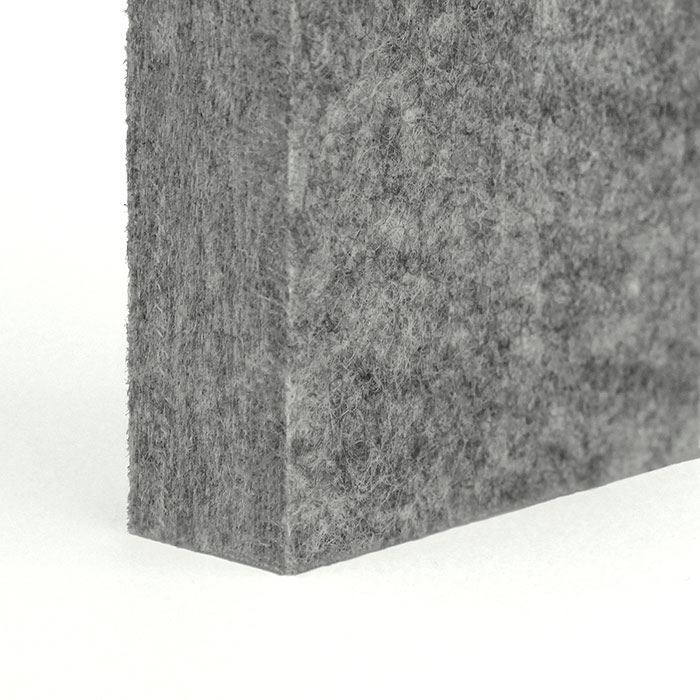

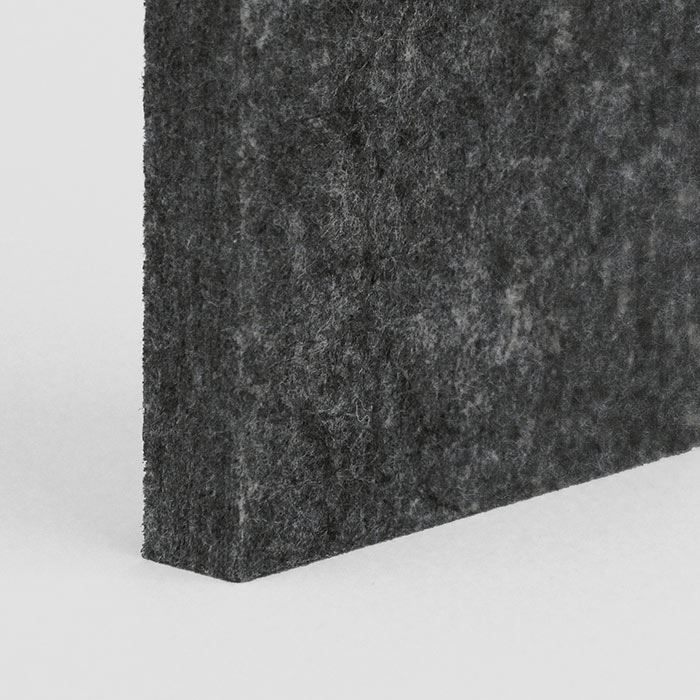

0.94" - Ash *Classic, Network, Steps, & Taper only0.94" - Graphite *Classic, Network, Steps, & Taper only0.94" - Nero *Classic, Network, Steps, & Taper only0.94" - Pure *Classic, Network, Steps, & Taper only
0.94" - Stone *Classic, Network, Steps, & Taper only

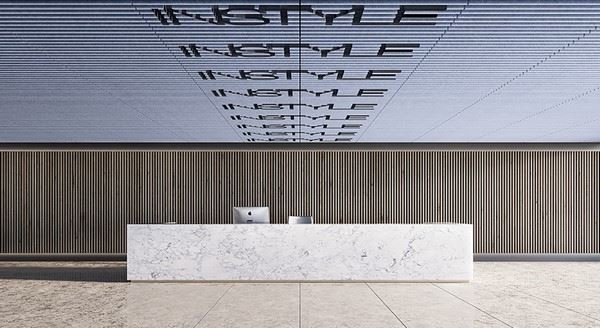

Sculpt® Profile Designs
Add + SubtractClassicCoveCustom
DiamondFortIconMod
NetworkPeakQuadrantRandom
RidgeStepsTaperTide
Zig
