Unika Vaev -Ecoustic® Timber Blade Panels

DOWNLOADS

Description

The ecoustic® Timber Blade Panels are available in four blade profiles manufactured in either Hemlock (clear, white wash, walnut, hickory, shale or espresso), Red Cedar (clear), Spotted Gum (clear), or in White Birch Plywood (clear).


Category: 095100 | acoustic ceilings | acoustical ceilings...

MasterFormat: Suspended Wood Ceilings | Decorative Panel Ceilings | Acoustic Board Insulation...



Unika Vaev
114 New Park Avenue
Suite 1
North Franklin, CT 06254
Tel: (800) 237-1625
Fax: (888) 784-8209

sweets@unikavaev.com

https://unikavaev.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview


Ecoustic® Timber Blade Panels

Description

The ecoustic® Timber Blade Panels are available in four blade profiles manufactured in either Hemlock (clear, white wash, walnut, hickory, shale or espresso), Red Cedar (clear), Spotted Gum (clear), or in White Birch Plywood (clear). The wall blades are an 106″(L) x 12.1″(W) panel that incorporate a black acoustic scrim backing. To provide sound absorption, the panels may also be backed with .47″ thick acoustic infill to increase its sound-absorption capabilities. Acoustic Timber Blade Panel can be applied on curved surfaces of up to a 5.9″ radius (150mm Ø) for an additional charge. Please note that the frame cannot be bent more than twice as you will risk the frame snapping due to metal fatigue. Pricing on the curved options will be quoted on a per job basis.

Designer

Instyle Studio

Application

Ceiling, Wall

Environment

Low VOC, PEFC Certified Wood, No Fire Retardant Additives

Content

100% PEFC Certified Wood

NRC Rating

(with Ecoustic® Core Backing Please Inquire)

Dimensions

(L) 106.3" x (W) 12"

Sold In

Box of 4

Flammability

AS/NZS 3837
ASTM E84 Class B

Additional Information

- ecoustic® Timber Blade Panels are available in four profiles. The panels are all 8’10″(L) x 12″(W) but the individual blades range in thickness, depth and spacing.
- ecoustic® Timber Blade Panels may also be installed to cover ceilings.
* Birch Plywood is not available for the following profiles: 1830-7, 1830-13,3060-4, 3060-7, 3060-8
** For complete dimensions and weights on all ecoustic® Timber Blade Panel options, please refer to our specifications on the right hand side of this page.
*** Wood grain and color may vary from samples. As a natural wood product, variation from batch to batch may occur

Performance

- For increased broadband sound-absorption including critical human speech range frequencies, ecoustic® Timber Blade Panels can be installed with an ecoustic® Infill. For more information on installation with Infill please refer to the Installation + Care document.
- Specifically engineered to deliver outstanding sound-absorption in wall and ceiling applications compared to standard systems, ecoustic® Infill is a thin and compact material that achieves high levels of sound-absorption in low and high speech range frequencies, eliminating the need for bulky acoustic insulation.

Green Star + LEED

Green Star: Timber Blade can contribute the following points for Green Star
- Low VOC
LEED: Blade can contribute the following points for LEED
- Low VOC
WELL: Blade can contribute to the following WELL criteria:
- Low VOC / VOC Reduction
- Toxic Material Reduction: Timber Blade is free of PVC, PFCs, flame retardants, phthalates + urea formaldehyde


See More


Specifications

Available Colors
Hemlock / Clear finishHemlock / Espresso finishHemlock / Hickory finishHemlock / Shale finish
Hemlock / Walnut finishHemlock / White Wash finishSpotted Gum / Clear finishWestern Red Cedar / Clear finish

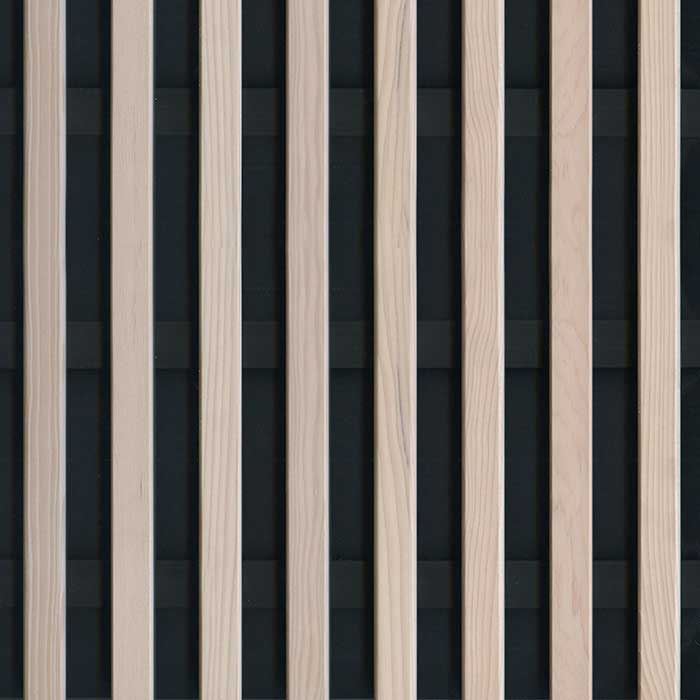

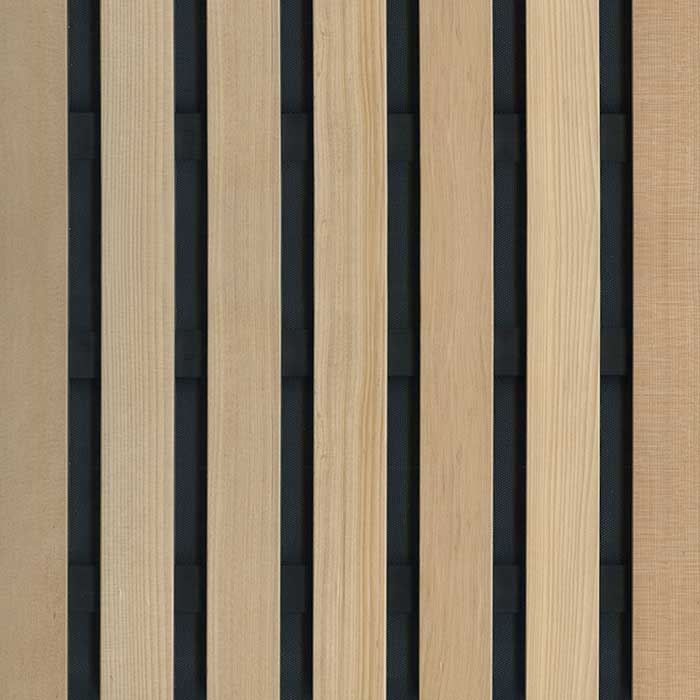

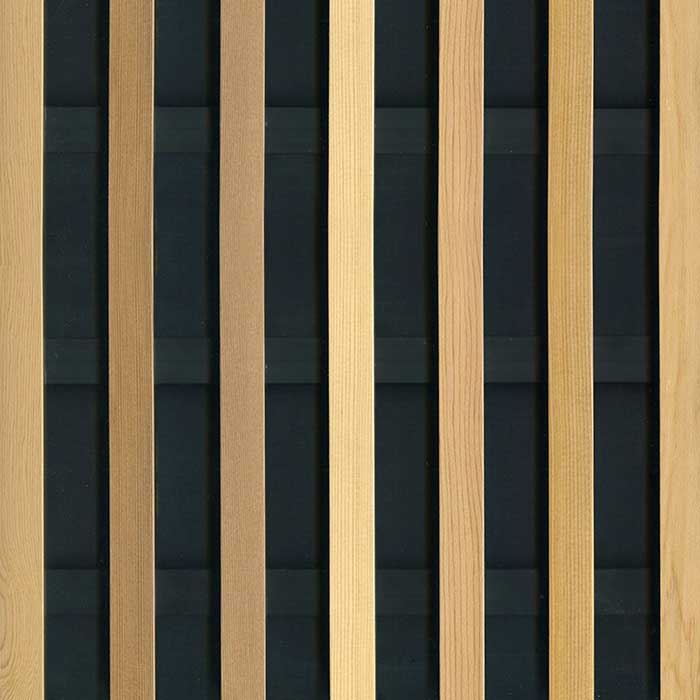

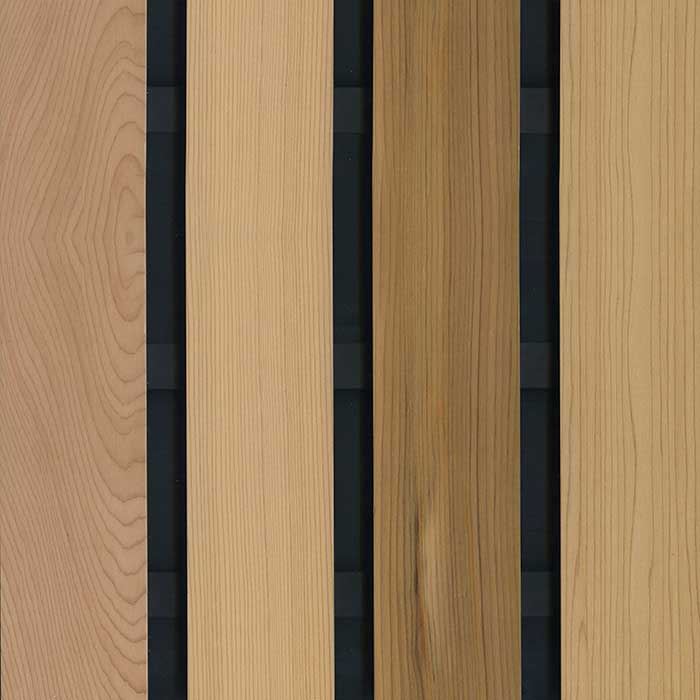

Timber Blade Panel Profile Options
1830-73018-73018-93060-4
