Unika Vaev -Ecoustic® Panel Disc Printed Wall Panel

DOWNLOADS

Description

A sophisticated and intelligent acoustic panel print designed by Michael Young.

Designer

Michael Young

Application

Ceiling, Screen, Wall

Environment


Category: absorbers | commercial ceilings | interior dividers...

MasterFormat: Acoustical Panel Ceilings | Direct-Applied Acoustical Ceilings | Acoustic Board Insulation...



Unika Vaev
114 New Park Avenue
Suite 1
North Franklin, CT 06254
Tel: (800) 237-1625
Fax: (888) 784-8209

sweets@unikavaev.com

https://unikavaev.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

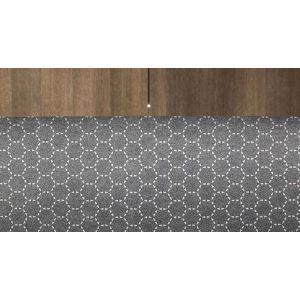

Ecoustic® Panel Disc Printed Wall Panel

Description

A sophisticated and intelligent acoustic panel print designed by Michael Young.

Designer

Michael Young

Application

Ceiling, Screen, Wall

Environment

Low VOC, Rapidly Renewable Content, Recycled Content, Third Party Certified, mindful MATERIALS, Greentag Level A Certified, EPD, HPD

Content

100% PET (up to 65% recycled content)

NRC Rating

0.30 - 1.0

Dimensions

3' 11.5" x 8' 11" Thickness- 0.31", 0.53", 0.98", or 1.97" / Actual Printed Area is 3' 11" x 8' 10.5"

Sold In

Box sets per thickness: 0.31" (8), 0.53" (5), 0.98" (6), 1.97" (3)

Flammability

AS/ISO 9705 group 1
AS/NZS 1530.3
ASTM E84 Class A
GB 8624

Additional Information

- Pattern Repeat: Width 3.94″ (100mm) Height 2.28″ (58mm).
- The pattern on Disc is railroaded when used as ecoustic® Screen.
- Printed Panels are available in several thicknesses, 0.31″, 0.53″, 0.98″, 1.97″.
- Minimums are required for the 0.53″ (3 boxes), 0.98″ (3 boxes), and 1.97″ (5 boxes).
- Detailed NRC ratings may be found on the panel specification document on this page.
- Natural anodized aluminum edging lengths at 9′ with counter sunk holes are available for all ecoustic® Panel thicknesses.
- ecoustic® is an intelligent alternative to traditional panels composed of multiple materials such as particle board, fabric, foam and adhesive.
- ecoustic® Panels + Screens can be trimmed and installed without the need for additional finishes, which reduces labor and material costs.

Performance

- The NRC rating range for ecoustic® panels is between 0.30 and 1.0 depending on the panel thickness, when the panel is directly fixed to a wall.
- Increased NRC ratings may be achieved by installing ecoustic® panels with an air gap.
- Compared to traditional panels, the semi rigid ecoustic® Panel + Screen is lower in weight, easier to handle and results in reduced transportation costs.

Green Star + LEED

- ecoustic® Panel is Greentag Level A Certified and can achieve maximum Green Star points.
- 65% post consumer content contributes to LEED MR Credit 4 recycled content.


See More


Specifications

Available Colors
Moss on NaturalStone on CharcoalWhite on White
Full Panel Artwork
Moss on NaturalStone on CharcoalWhite on White
Edging Trim Option
0.35"
