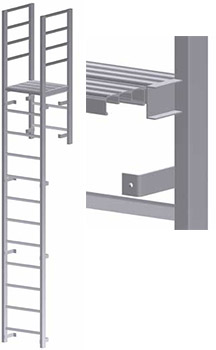

Parapet Access with Platform Vertical Ladder – U-203
The U-203 Parapet Access Vertical Ladder by UPNOVR, Inc. is designed to meet or exceed OSHA and ANSI A14.3 standards. The U-203 Parapet Access Vertical Ladder is manufactured from non-spark, high-strength materials to applicable ASTM standards, with standard mill finish. Ladder rungs are available in standard 18” or 24” widths, made from deep serrated material for sure-footed climbing, with 1,000 pound loading capacity. The U-203 Parapet Access Vertical Ladder is designed to provide access to a roof area with parapet return ladder. It features walk-through hand railing, a crossover platform, and a return ladder from a parapet to the roof to assure safe entry and exit. Standard wall mounting brackets are included with all ladders.
Security doors, safety climb fall arrest systems and custom fabrication requirements are available options — please contact UPNOVR for further information.
- Height: Customer Specify up to 20 Feet
- Width: 18”/24”
- Material: Aluminum 6061 – T6
- Manufactured To: OSHA & ANSI 14.3
- Loading: 1000#/rung
