kwikSTIK® Paper-Faced Tape-On Metal Corner Bead Super Wide features wider flanges for more complete coverage. The product is essentially the same as P1 Deluxe Super Wide except P1 Super Wide utilizes slightly lighter steel making it a more economical product.


Category: drywall beads | drywall trim | metal beads...

MasterFormat: Plaster and Gypsum Board | Plaster and Gypsum Board Assemblies | Supports for Plaster and Gypsum Board...



Super Stud Building Products
2960 Woodbridge Avenue
Edison, NJ 08837
Tel: (732) 662-6200

info@buysuperstud.com

https://www.buysuperstud.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview


Paper-faced Metal Corner Bead

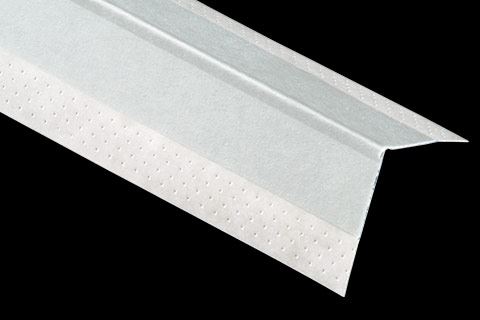

kwikSTIK® Paper-Faced Tape-On Metal Corner Bead Super Wide features wider flanges for more complete coverage. The product is essentially the same as P1 Deluxe Super Wide except P1 Super Wide utilizes slightly lighter steel making it a more economical product. Used on 90° outside corners with any standard drywall thickness for straight, precise corners. The rigid steel- reinforced corner is covered with a unique, high strength paper providing maximum strength and protection while preventing cracking caused by the movement or shrinkage of framing members. Install by pressing firmly into joint compound and removing excess compound with a drywall knife or clean rag.

Product Data and Ordering Information:

Material: 0.010 min thickness, minimum G40
Part Number: PSW10EGB
Length: 8', 10'

Special Notes:

LEED Credits for Recycled Content
MR2 - The steel and vinyl used in Phillips Manufacturing products is 100% recyclable.
MR4 - Phillips Manufacturing steel and vinyl products have a minimum of:
Total recycled content: 30%
Post-consumer recycled content: 25%
Pre-consumer recycled content: 5%

ASTM and Code Standards:

All Phillips kwikSTIK® Paper-Faced Tape-On Metal Corner Beads meets or exceeds the following ASTM standards except this product utilizes slightly lighter steel that does not meet ASTM standard C1047. However, this product meets all other applicable ASTM standard requirements:
- ASTM C1047 Standard Specification for Accessories for GypsumWallboard*
- ASTM A653 Standard Specification for Steel Sheet, Zinc-Coated (Galvanized) or Zinc-Iron
Alloy-Coated (Galvannealed) by the Hot-Dip Process
