Overview



Custom Stairs

Custom Stairs

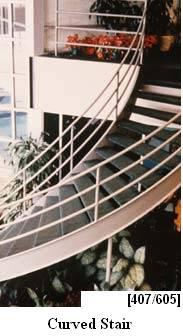

Custom Curve Stair

The above is a custom curve staircase with a 3 line rail system. The stair was built with a heavy duty MC 10x 8.4 stringer with the an inside radius of 5’ and an outside radius of 9’to the center line, leaving the tread width at 48" with a 17" run at the widest point and a 7 1/2" at the narrowest point. The treads are made from 12 gauge smooth steel. The rail system is made out of 1 1/2" .065 round tubing with the posts spaced an equal distance from the bottom of the stair to the top. The handrail is 34" high from the nose of the tread to the top of the handrail and the intermediate rails spaced equally.

The balcony rail is 42’ high from the floor to the top of the rail and is manufactured with four vertical line rails to match the stair railing. The staircase was fabricated at the plant to the exact measurements and shipped in one section ready for installation. (This type of stair can either be bolted or field welded in place.) A light gray primer was applied at the plant with carpet and finish paint applied by others.


Custom Stairs

Various Custom Models


Custom Stairs

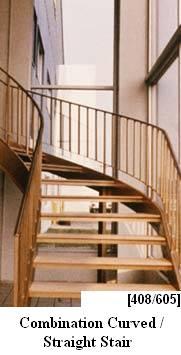

Straight Stair Curve Combo

This stairway starts off straight, then curves at the mid point up to the second floor. Stair is 48 inches wide and approximately 10 feet tall with 16 risers. The stringers are made out of MC 10 x 8.6 heavy duty channel. The handrail is a # 200 (1 1/2") round tubing, balusters are a # 308 (3/4") square tubing spaced less than 4 inches apart. The treads are a # 120 (12 gauge) pan type with a wood overlay # 140 (1") thick with a bull nose. The finish is a red oxide primer and wood treads a natural finish. The final finish of paint and stain by others at the job site.


Custom Stairs

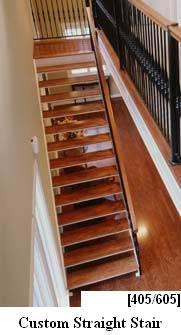

Straight Stair

Along with our wide variety of metal spiral staircases and wood spiral staircases, both fully assembled and in kit form, Stairways Inc. offers our clients custom staircases built to their specifications, even if it involves a unique blend of standard spiral stairway parts and custom diameters and sizes. For instance, Stairways Inc. can custom fabricate curved stairs; straight staircases, with switchback and forth up to 40 to 50 feet; and custom staircases with no center column. Custom staircases can be shipped fully assembled, or shipped in the largest possible sections that can then be spliced together on the job site. Prospective clients and customers are invited to use our Quote Center or fax your custom drawing, or email your custom staircase design in .dwg or .dwf file format.

Depending on your custom staircase requirements, Stairways Inc. can use a mix of standard staircase parts along with your custom heights, diameters, and other calculations. Our design and engineering specialists can develop a complete set of shop drawings, CAD drawings and engineering specifications, blue line drawings, and other documents if your project or design requires building inspector, building department or other official approvals. Your custom staircase can be completed in a variety of finishes; for a list of finishes available, click here.

Custom staircases can also be fabricated using a mix of metal and wood staircase parts, such as metal handrails with wood treads. As mentioned previously, custom diameters and heights are attainable; the only limitation is that custom staircase diameters larger than 72” will require disassembly and to be shipped in kit form (or in smaller sections). Whatever your custom staircase requirements call for, rest assured the highly skilled and knowledgeable staff here at Stairways Inc. can make your concept a reality – call or email us today for all your custom staircase design needs!
