Specified Technologies, Inc. -CS Cable Spray

DOWNLOADS

SpecSeal Cable Spray applies quickly to grouped cables within cable trays, providing protection against cable jacketing ignition from direct fire exposure and slowing flame propagation.


Category: firestopping | firestopping spray | intumescent firestopping...

MasterFormat: Applied Fireproofing | Firestopping | Fire-Retardant Coatings...


View Product Details From Manufacturer


Specified Technologies, Inc.
210 Evans Way
Somerville, NJ 08876
Tel: (800) 992-1180
Fax: (908) 526-9623

customerservice@stifirestop.com

https://www.stifirestop.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

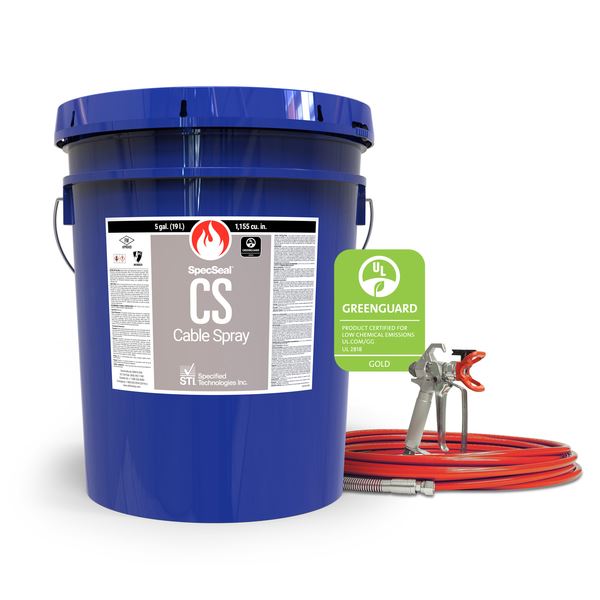

CS Cable Spray

SpecSeal Cable Spray applies quickly to grouped cables within cable trays, providing protection against cable jacketing ignition from direct fire exposure and slowing flame propagation. Cable Spray applies quickly with an airless spray rig, only requiring a minimum 1/8" wet applied thickness. Once cured, Cable Spray forms a flexible, water and weather resistance seal adhering to virtually all cable jacketing materials.

Features

  • Contains no inorganic fibers, asbestos, or solvents
  • FM Approved to FM Approval Class: 3971
  • Meets IEC 60331-21 & IEC 60332-3
  • Passes IEEE 383/1202
  • UL® GreenGuard Gold Certified


See More


Specifications

Physical Properties
PropertyValue
ColorWhite
Density/Weight per Gallon10.7 lb/gal (1.28 kg/L)
Solids Content by Weight68.9%
Solids Content by Volume62.5%
Flame Spread0*
Smoke Development15*
Coverage17.1 sq ft/gal @ 3⁄32" Wet Film Thickness (0.42 sq m/L @ 2.4 mm Wet Film Thickness)
Viscocity105,000 cps
In Service TemperatureLess than 185°F (85°C)
Storage Temperature40°F (4°C) to 95°F (35°C)
Application Temperature40°F (4°C) to 95°F (35°C)
Drying TimeTack Free 2 Hours**
Dry Through24-48 Hours
VOC Content26 g/L***
Shelf Life From Date of Manufacture24 months
Ordering Information
Catalog NumberUPC NumberDescription
CS1057305730710455 Gallon Pail - 1,155 cu. in. (19 liters)
