Overview

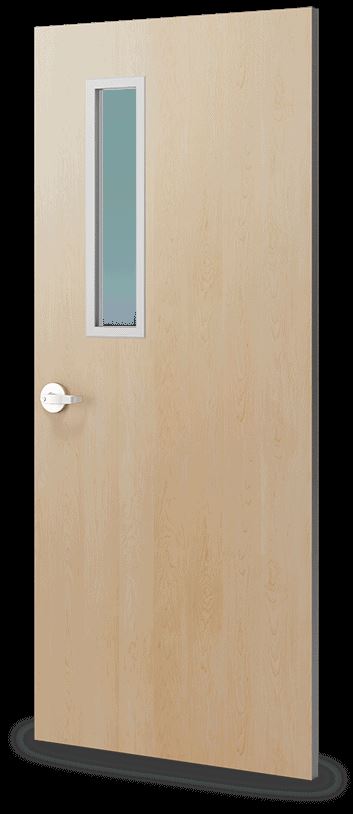

AF-219-1FR Contemporary Wood Grain Fire Door

Fire doors are a vital part of a building’s passive fire protection system. When properly installed and maintained, they will help to compartmentalize a building to protect occupants and property from the spread of smoke, flames, and aid in providing a safe means of egress during a fire. Purchasing your fire-rated doors and framing from one vendor can minimize costs and shorten lead time.

This rustic woodgrain version (219FR) and the contemporary light maple wood grain (219FR-1) of our all fiberglass fire doors are available with 20, 45, 60, and 90 minute fire ratings. Tested in accordance with UBC 7-2, NFPA 252 and UL 10C requirements, the AF-FR Series have passed the 1-1/2 hour positive pressure test, hose stream test, and 250 degree temperature rise tests, and are labeled by Intertek.

Fire-rated mineral core with edge blocking for superior screw holding

Stainless steel vision lites provided by Special-Lite or others

Technical Information
Core
  • WSCP-412 proprietary mineral core
  • 1-1/2” nominal thickness
  • 18 pcf minimum density
Framing
  • FR-Series Framing
  • ¼” thick, solid, pultruded, FRP profiles
  • No corrosive components or reinforcements
  • Solid tectonite filler
  • No steel or aluminum filler is allowed
  • Any category C standard frame
  • Any category C proprietary frame
Standard Sizes
  • 42” x 96” maximum size single swing
  • 84” x 96” maximum size standard pairs
Accessories
Hardware
  • Hinges Per NFPA 80, Table 6.4.3.1
  • Single-point latching on singles, 4-point latching for pairs
  • Surface vertical rod less bottom rod allowed on 45-min and lower pairs and singles with door to door or door to floor fire pin installed in each leaf
  • Brass, bronze, steel, aluminum, polycarbonate or decorative laminate maximum 12 from bottom rail
  • Astragal - Optional wood astragal
Stiles
  • Single Swing
  • Hinge and lock stile, 2” minimum tectonite with Palusol P-100 Intumescent and 0.090” thick fiberglass edge painted to match door face
Standard Pairs
  • Hinge stile, 2” minimum tectonite with Palusol P-100 Intumescent and 0.090” thick fiberglass edge painted to match door face
    • Meeting edge, 3” minimum with Palusol P-100 Intumescent and 0.090” thick fiberglass edge painted to match door face
Rails
  • Top rail, 6” minimum tectonite with Palusol P-100 Intumescent and 0.090” thick fiberglass edge painted to match door face
  • Bottom rail, 4” minimum for single swing, 4-1/2” minimum for pairs tectonite with 0.090” thick fiberglass edge painted to match door face
