Overview



Soffit Panels

Soffit Panels

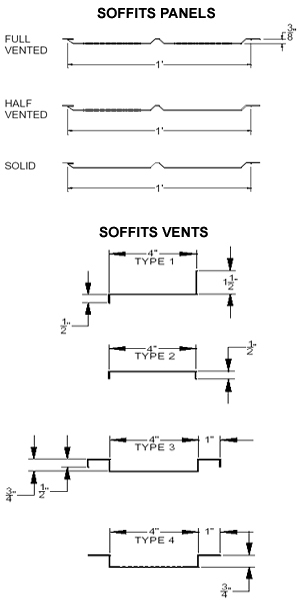

Soffit Panels are available in solid, full vented, or partial vented panels with an interlocking slip joint. These panels are roll-formed 0.032" aluminum and feature a stiffening groove to improve flatness and minimize "oil canning".

Panel lengths are cut to order up to 20 linear feet. If not requested, standard 10 foot lengths are provided.

Colors

As with all Perimeter Systems products, these panels are available in 56 EZ Mix Colors or with anodic coatings. Selecting Perimeter Systems panels, gutters, and cornice trims will assure you of color match and consistency throughout your project.

Soffit Vents

Soffit Vents are available in 4 styles. These vent materials are produced in 10' lengths with a 3" wide pattern of 3/16" holes at 1/4" staggered centers. This pattern allows for a 50% open area which will not inhibit all insects. Install a noncorrosive wire screen behind the product when this is a design consideration.

We form these vents to order and you may alter their designs to accomodate your vent requirements as long as no bends are located in the perforated area. The blank size is 9.5" x 120" with the 3" band of perforations centered.
