Overview



Designer Series Cornices

Designer Series Aluminum Cornices: (Formed & Extruded)


Designer Series Cornices



Designer Series Cornices

Formed & Extruded Cornices...

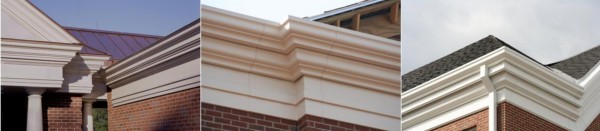

Designer Series Cornice trims & mouldings are available in both formed and extruded aluminum profiles. Formed cornices offer an economical solution for virtually unlimited designs. Extruded cornices offer a more refined and elegant presence for pediments, entablatures, and other prominent building elements that are close to view. With careful planning, both cornice materials may be used on a single project to enhance aesthetics and optimize value.

15 Designs, with all the details worked out...
We offer 15 predesign cornices, in both formed and extruded mouldings, with all the framing details worked out for you. These predesign cornices may be modified to suit your buildings eave conditions by simply adding or exchanging mouldings. Our cornices may be installed over conventional wood or light gauge steel framing as well as our new “Mounting Gusset”. These new mounting gussets are manufactured from heavy gauge galvanized steel and designed to form fit your cornice. Gussets are fastened to your building’s structure with screws or bolts at 24” to 32” centers (spaced according to your framing design or building codes).


Designer Series Cornices

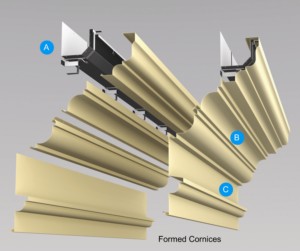

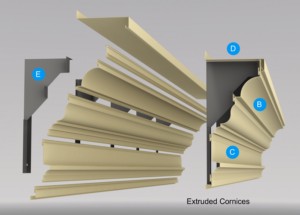

Components

A. Concealed, integral gutters are available for both formed and extruded cornices. These heavy duty gutters have been time tested for over 20 years without failure.

B. We offer many sculptured mouldings that may be interchanged with one another to create cornice profiles limited only by your imagination.

C. In addition to our sculptured mouldings we offer numerous styles of frieze mouldings and sills.

D. For parapet and entablature applications, we offer shelf and counter flashings for a weather tight system.

E. Mounting Gussets offer many advantages over conventional framing such as;

  • Eliminating expensive sub framing & sheathing.
  • Provides a precise structure to attach your cornice
  • Reduces the need for field verification.
  • And, metal gussets will not burn or contribute to combustion.
  • No special trades are required for installation.
  • Offers greater assurance for wind uplift.
  • Improves installation time.

Designer Series Pediments & Entablatures


Designer Series Cornices



Designer Series Cornices

Refined, Elegant & Durable...

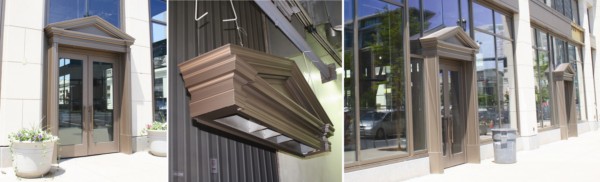

Beautiful Pediments and Entablatures are available in a variety of styles from Perimeter Systems. You can now easily create a classical building element to accent any opening. Manufactured from extruded aluminum mouldings, the new eco-friendly Designer Series sets new standards for durability while presenting a more refined and elegant appearance.

Modular Constructions...

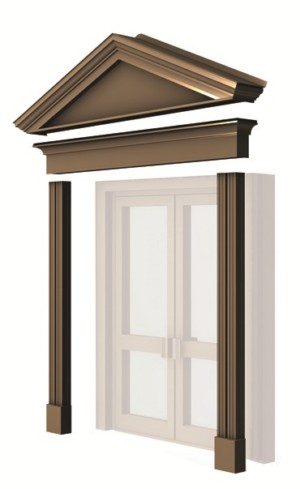

Pediments, Entablatures, and Columns are manufactured as “stand alone” components. With several Pediments, Entablatures, and Columns available, these components are easily interchanged allowing you to accent any opening, creating an element that compliments your building’s design. In addition, entablatures are available with different frieze mouldings creating more design options for you.

Easy Installation...
Perimeter Systems’ Pediments and Entablatures feature unique concealed gussets and wall plates that allow the installer to simply hang and bolt the unit in place. No special trades or heavy framing required for these light weight assemblies.

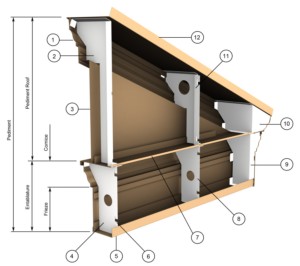

Designer Series Cornices

1. Rake Cornice
2. Center Gusset
3. Infill
4. Entablature Center Gusset
5. Soffit
6. Mounting Notch (typical)
7. Shelf (self-draining)
8. Entablature Mid Gusset
9. Entablature End Gusset
10. End Gusset
11. Mid Gusset
12. Roof

Holes are provided in gussets to allow for lifting and passage of electrical wiring.

Visit us on the web at http://www.saf.com/persys/ for all Predesigned Cornice and Pediment options.
